New Holland

CR960

Combine

Operating Weight w/o Attachment
35,150 lb
Fuel Capacity
198.0 gal
Displacement
476 in³
Power
330.0 hp
All combines/harvesters

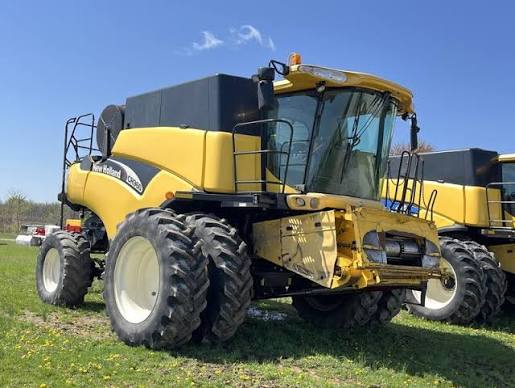

New Holland CR960 Combine
1 / 5
Image 1 of 5
Image: agrodoctor.eu

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment35,150 lb
Fuel Capacity198.0 gal
Transmission TypeHydrostatic 4-speed gearbox

Engine

Engine specifications
Displacement476 in³
Power Measured @2,100 rpm
Number of Cylinders6
AspirationIntercooled
Power330.0 hp

Dimensions

Dimensions specifications
Wheelbase149 in
Width Over Tires131 in
Height to Top of Isomount Cab156 in

Cleaning System

Cleaning System specifications
Total Cleaning Area8,370 in³

Grain Handling

Grain Handling specifications
Grain Tank Capacity2,792.8 gal
Unloading Speed3 bu/sec

Threshing

Threshing specifications
Rotor Diameter17 in
Rotor Length104 in
