New Holland

CR970

Combine

Operating Weight w/o Attachment
36,831 lb
Fuel Capacity
264.0 gal
Displacement
629 in³
Power
370.0 hp
All combines/harvesters

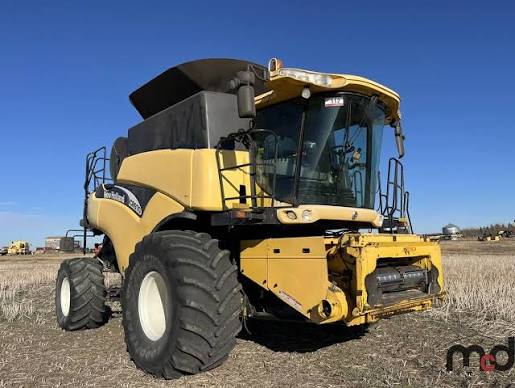

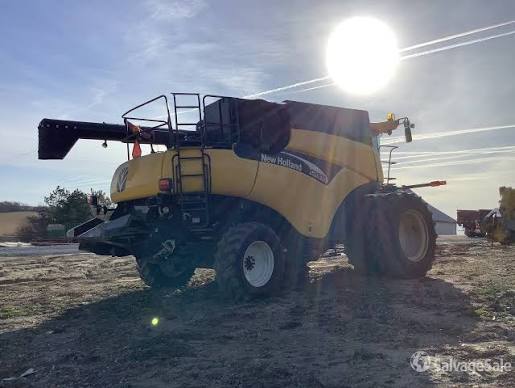

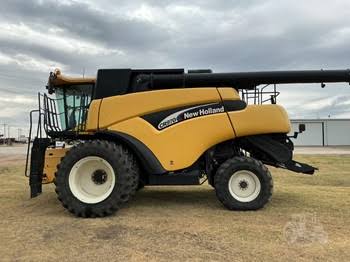

New Holland CR970 Combine
1 / 5
Image 1 of 5
Image: usedequipment.newholland.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Operating Weight w/o Attachment36,831 lb
Fuel Capacity264.0 gal
Transmission TypeHydrostatic 4-speed gearbox

Engine

Engine specifications
Displacement629 in³
Power Measured @2,100 rpm
Number of Cylinders6
AspirationIntercooled
Power370.0 hp

Dimensions

Dimensions specifications
Wheelbase149 in
Width Over Tires131 in
Height to Top of Isomount Cab156 in

Cleaning System

Cleaning System specifications
Total Cleaning Area10,075 in³

Grain Handling

Grain Handling specifications
Grain Tank Capacity3,072.0 gal
Unloading Speed3 bu/sec

Threshing

Threshing specifications
Rotor Diameter22 in
Rotor Length104 in
