New Holland

E130

Excavator

Operating Weight
32,192 lb
Max Digging Depth
235 in
Net Power
94.0 hp
All excavators

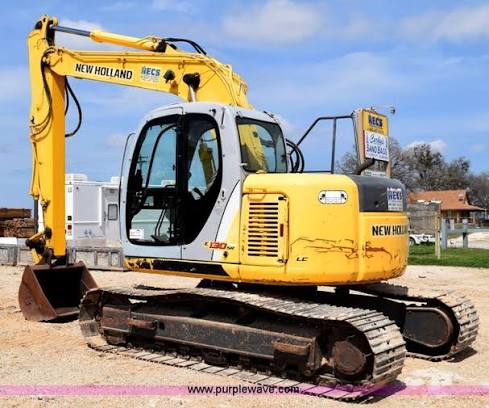

New Holland E130 Excavator
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,192 lb
Fuel Capacity42.3 gal
Hydraulic Pump Flow Capacity57.8 gal/min
Hydraulic System Fluid Capacity37.0 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity3.4 gal
Cooling System Fluid Capacity4.8 gal
Operating Voltage24 V
Alternator Supplied Amperage30 A

Engine

Engine specifications
Engine ModelA-4BG1T
Displacement264 in³
Power Measured @2,200 rpm
Net Power94.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance2 in
Height - Top of Cab108 in
Length of Track on Ground120 in
Tail Swing Radius56 in
Width to Outside of Tracks102 in
Removal Counterweight Clearance430 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge1 in
Max Travel Speed3.7 mph
Shoe Size24 in
Drawbar Pull28,500 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth235 in
Max Reach Along Ground342 in
Max Loading Height238 in
Max Cutting Height349 in
Shipping Length of Unit292 in
Shipping Height of Unit111 in

Bucket

Bucket specifications
Reference Bucket Capacity0.50 yd³
Maximum Bucket Capacity0.90 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
