New Holland

E135SR

Excavator

Operating Weight
32,408 lb
Max Digging Depth
217 in
Net Power
84.5 hp
All excavators

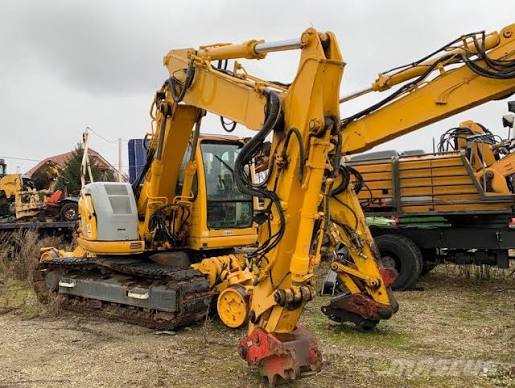

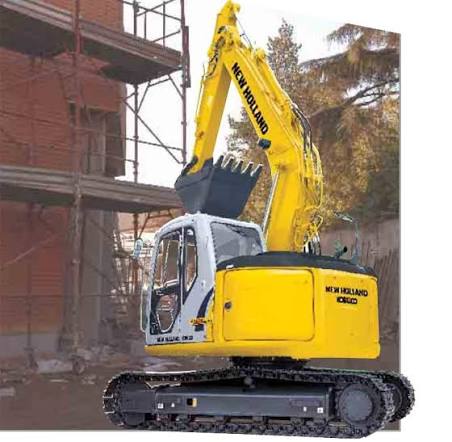

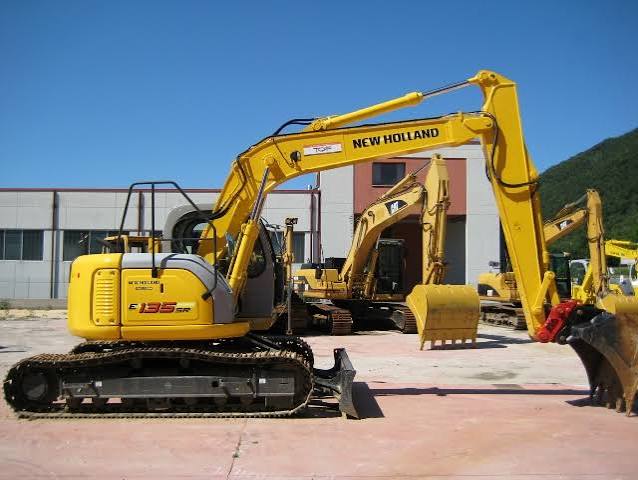

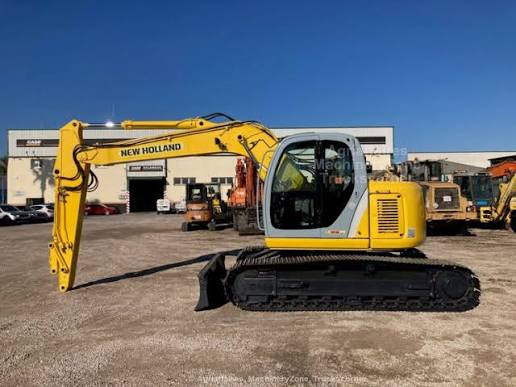

New Holland E135SR Excavator
1 / 5
Image 1 of 5
Image: sodineg.com

Specifications

13 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,408 lb
Hydraulic Pump Flow Capacity62.4 gal/min
Hydraulic System Relief Valve Pressure4,786 psi

Engine

Engine specifications
Net Power84.5 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground120 in
Tail Swing Radius56 in
Width to Outside of Tracks98 in

Undercarriage

Undercarriage specifications
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth217 in
Max Reach Along Ground348 in
Max Loading Height245 in
Shipping Length of Unit295 in
