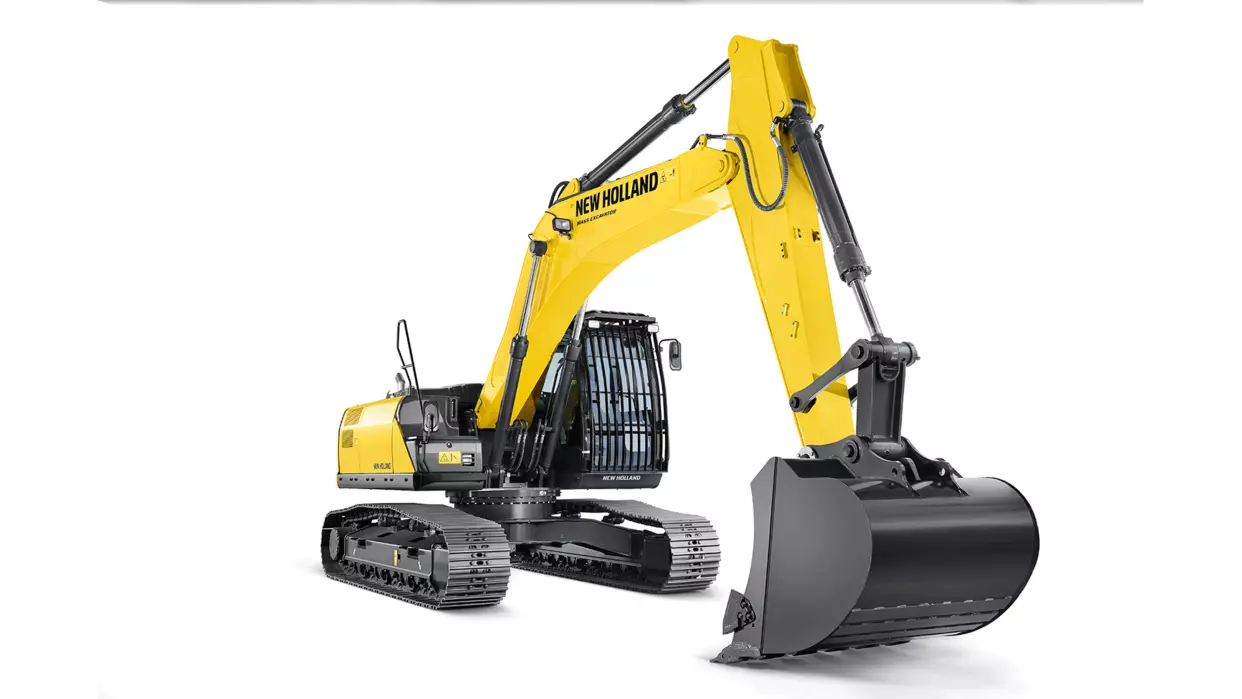

New Holland
E245
- Operating Weight
- 53,837 lb
- Max Digging Depth
- 226 in
- Max Digging Depth
- 238 in
- Net Power
- 160.0 hp
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 53,837 lb |
|---|---|
| Fuel Capacity | 77.2 gal |
| Hydraulic Pump Flow Capacity | 111.0 gal/min |
| Hydraulic System Fluid Capacity | 71.4 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | CNH F4BE0684 |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 160.0 hp |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 487 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 121 in |
| Length of Track on Ground | 135 in |
| Tail Swing Radius | 109 in |
| Width to Outside of Tracks | 100 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 22 in |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 226 in |
|---|---|
| Max Reach Along Ground | 353 in |
| Max Loading Height | 260 in |
| Max Vertical Wall Digging Depth | 216 in |
| Max Cutting Height | 369 in |
| Shipping Length of Unit | 377 in |
| Shipping Height of Unit | 121 in |
Bucket
| Reference Bucket Capacity | 0.71 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 238 in |
|---|---|
| Max Vertical Wall Digging Depth | 230 in |
| Max Cutting Height | 377 in |
| Max Loading Height | 268 in |
| Max Reach Along Ground | 366 in |
| Shipping Length of Unit | 374 in |
| Shipping Height of Unit | 121 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 259 in |
|---|---|
| Max Cutting Height | 385 in |
| Max Loading Height | 277 in |
| Max Vertical Wall Digging Depth | 252 in |
| Max Reach Along Ground | 385 in |
| Shipping Length of Unit | 371 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 282 in |
|---|---|
| Max Cutting Height | 381 in |
| Max Reach Along Ground | 401 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Dig Depth | 275 in |
| Shipping Length of Unit | 374 in |
