New Holland

E35

Mini Excavator

Operating Weight
7,960 lb
Max Digging Depth
121 in
Net Power
28.4 hp
All mini excavators

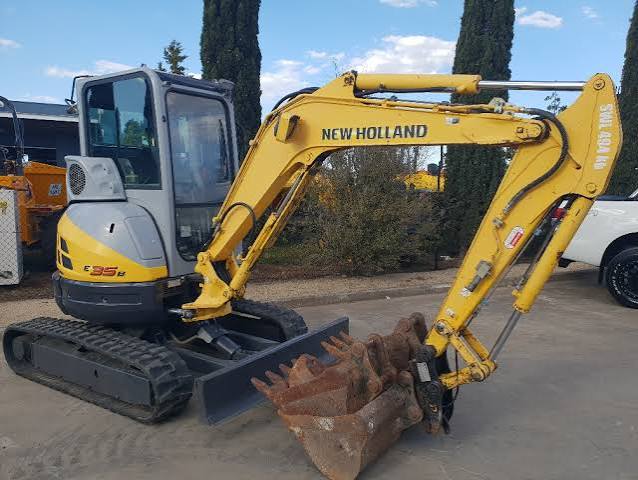

New Holland E35 Mini Excavator
1 / 5
Image 1 of 5
Image: construction.newholland.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,960 lb
Fuel Capacity10.0 gal
Hydraulic Pump Flow Capacity15.5 gal/min
Hydraulic System Fluid Capacity12.7 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine Model3TVN88-PYB
Displacement100 in³
Power Measured @2,400 rpm
Net Power28.4 hp
Number of Cylinders3
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab102 in
Length of Track on Ground85 in
Tail Swing Radius33 in
Width to Outside of Tracks48 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge55 in
Max Travel Speed2.8 mph
Shoe Size12 in
Drawbar Pull8,587 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth121 in
Max Reach Along Ground202 in
Max Vertical Wall Digging Depth94 in
Max Loading Height142 in
Shipping Length of Unit186 in
Max Cutting Height197 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque752 lb-ft
