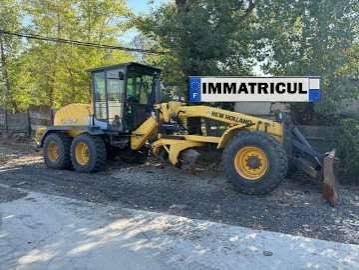

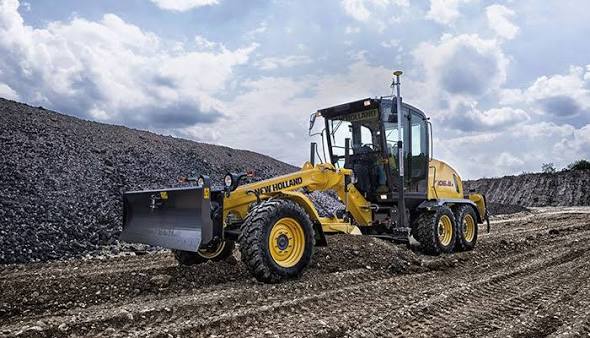

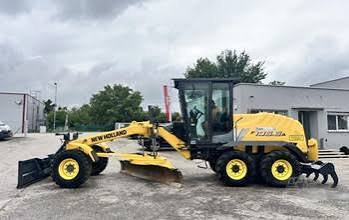

New Holland
Champion
730A
Motor Grader
53 specifications
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Max Operation Weight - Total | 25,353 lb |
|---|---|
| Max Operation Weight - Front Axle | 8,378 lb |
| Max Operation Weight - Rear Axle | 18,078 lb |
| Std Operation Weight - Total | 22,774 lb |
| Tire Size | 405/70R20 |
| Fuel Capacity | 50.0 gal |
| Std Operation Weight - Front Axle | 6,405 lb |
| Std Operation Weight - Rear Axle | 16,369 lb |
| Hydraulic System Fluid Capacity | 45.0 gal |
| Tandem Case Fluid Capacity (each) | 19.6 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 5.6 gal |
| Oil System Fluid Capacity | 3.4 gal |
Engine
| Engine Model | CNH 4-Stroke Diesel Engine |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,100 rpm |
| Number of Cylinders | 6 |
| Aspiration | turbocharged water-cooled |
| Max Power | 135.0 hp |
| Net Power Gear 5-6 | 135.0 hp |
Hydraulic System
| Pump Flow | 25.1 gal/min |
|---|---|
| Pump Type | Swash Plate Variable Displacement |
| Relief Valve Pressure | 2,901 psi |
Dimensions
| Wheelbase | 207 in |
|---|---|
| Overall Length | 350 in |
| Width Over Tires | 91 in |
| Height to Top of Isomount Cab | 126 in |
| Blade Base | 78 in |
| Tandem Axle Wheelbase | 50 in |
| Front Ground Clearance | 6 in |
| Rear Ground Clearance | 13 in |
Transmission
| Max Speed - Forward | 23.5 mph |
|---|---|
| Max Speed - Reverse | 17.4 mph |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 3 |
| Transmission Type | Full Powershift Transmission |
Moldboard
| Moldboard Height | 6 in |
|---|---|
| Moldboard Width | 133 in |
| Moldboard Thickness | 1 in |
| Side Shift Left | 28 in |
| Side Shift Right | 20 in |
| Max Depth of Cut | 18 in |
Circle
| Max Lift Above Ground | 16 in |
|---|---|
| Max Reach Outside Tires - Left | 85 in |
| Max Reach Outside Tires - Right | 98 in |
| Shift Left | 28 in |
| Shift Right | 20 in |
Front Axle
| Wheel Lean | 22 ° |
|---|---|
| Oscillation - Total | 15 ° |
| Ground Clearance | 19 in |
Steering System
| Turning Radius | 285,433 in |
|---|---|
| Articulation Angle | 28 ° |
