New Holland

L150

Skid Steer Loader

Operating Weight
4,502 lb
Bucket Capacity
0.50 yd³
Max Speed
7.3 mph
All skid steer loaders

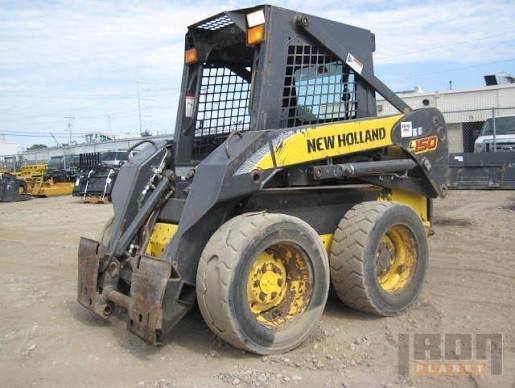

New Holland L150 Skid Steer Loader
1 / 5
Image 1 of 5
Image: boomandbucket.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,502 lb
Max Speed7.3 mph
Fuel Capacity8.8 gal
Hydraulic System Fluid Capacity5.0 gal
Tire Size10.00 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Fluid Capacity1.5 gal
Cooling System Fluid Capacity2.5 gal
Chain Box Fluid Capacity - each side1.6 gal

Engine

Engine specifications
Engine ModelN843H
Displacement92 in³
Power Measured @3,200 rpm
Number of Cylinders3

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity11.6 gal/min
Relief Valve Pressure2,500 psi
Pump TypeGear type

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab74 in
Wheelbase39 in
Width Over Tires50 in
Reach at Max Lift and Dump25 in
Length with Bucket120 in
Clearance at Max Lift and Dump88 in
Turning Radius from Center - inc bucket65 in

Loader

Loader specifications
Bucket Capacity0.50 yd³
Operating Load Rating1,349 lb
Tipping Angle2,701 °
Breakout Force3,508 psi
