New Holland

LB110

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
20.0 mph
Gross Power
108.0 hp
Net Power
103.0 hp
All backhoe loaders

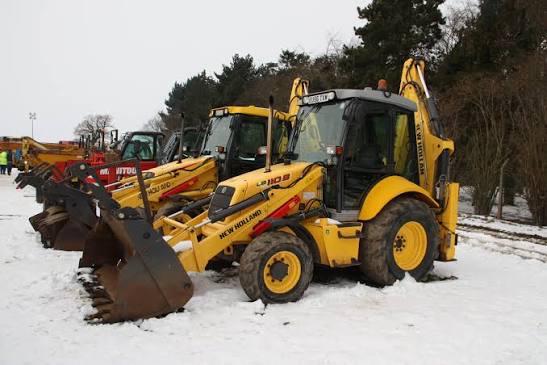

New Holland LB110 Backhoe Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd32,659 lb
Fuel Capacity33.0 gal
Hydraulic System Fluid Capacity38.0 gal
Cooling System Fluid Capacity6.5 gal
Operating Voltage12 V
Oil System Fluid Capacity4.5 gal
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelBSD 450T
Displacement305 in³
Gross Power108.0 hp
Net Power103.0 hp
Net Max Torque326 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.0 gal/min
Relief Valve Pressure3,045 psi
Pump Typedual gear open center

Dimensions

Dimensions specifications
Ground Clearance16 in
Wheelbase86 in
Transport Width127 in
Transport Length281 in
Height to Top of Suspended Cab114 in

Transmission

Transmission specifications
Max Speed20.0 mph
Max Speed - Reverse25.0 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepower-reveresing/torque converter powershift

General Specifications

General Specifications specifications
Operating Weight lbs (kg)14,814 (6,720) Starting 2004 Model Year
Lift Capacity lbs (kgs)7,782 (3,530) Starting 2004 Model Year
Loading Height ft (m)12.7 (3.9) Starting 2004 Model Year
4th Gear Fwd mph (kmh)20 (32.2) Starting 2004 Model Year
Breakout Force lbs (kgs)13,942 (6,324) Starting 2004 Model Year
Digging Depth ft (m)15 (4.5) Starting 2004 Model Year
SAE Net hp (kW)103 (77) Starting 2004 Model Year

Backhoe

Backhoe specifications
Dig Depth181 in
Reach From Swivel230 in
Dig Depth - Extended228 in
Load Height - Extended182 in
Bucket Dig Force12,809 lb
Reach From Swivel - Extended274 in
Reach at Load Height - Extended115 in
Bucket Dig Force - Extended12,809 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Clearance at Max Dump Height108 in
Bucket Breakout Force13,942 lb
Bucket Width89 in
Reach at Max Dump Height32 in
