New Holland
Volvo
BM 616B
Backhoe Loader
33 specifications
1 / 5

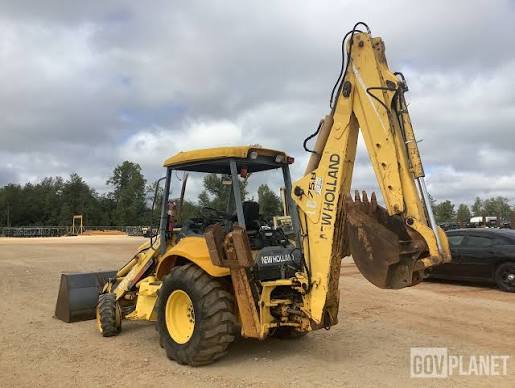

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight 4wd | 31,835 lb |
|---|---|
| Fuel Capacity | 35.7 gal |
| Hydraulic System Fluid Capacity | 31.2 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Tire Size Front - 2wd / 4wd | 12-16.5 |
| Oil System Fluid Capacity | 3.6 gal |
| Alternator Supplied Amperage | 90 A |
Engine
| Engine Model | 445T/M2 |
|---|---|
| Displacement | 275 in³ |
| Gross Power | 95.0 hp |
| Net Power | 89.0 hp |
| Aspiration | Turbocharged |
| Net Max Torque | 294 lb-ft |
Hydraulic System
| Pump Flow Capacity | 40.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,045 psi |
| Pump Type | dual gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 86 in |
| Transport Width | 127 in |
| Transport Length | 280 in |
| Height to Top of Suspended Cab | 114 in |
Transmission
| Max Speed | 20.1 mph |
|---|---|
| Max Speed - Reverse | 20.1 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power-reversing/torque conv |
Tires & Wheels
| Rear Tires Size | 19.5L-24 |
|---|
General Specifications
| Operating Weight lbs (kg) | 14,714 (6,674) — Starting 2004 Model Year |
|---|---|
| Lift Capacity lbs (kgs) | 7,782 (3,530) — Starting 2004 Model Year |
| Loading Height ft (m) | 12 (3.7) — Starting 2004 Model Year |
| 4th Gear Fwd mph (kmh) | 20 (32.2) — Starting 2004 Model Year |
| Breakout Force lbs (kgs) | 13,942 (6,324) — Starting 2004 Model Year |
| Digging Depth ft (m) | 14.5 (4.4) — Starting 2004 Model Year |
| SAE Net hp (kW) | 85 (63) — Starting 2004 Model Year |
Backhoe
| Dig Depth | 168 in |
|---|---|
| Reach From Swivel | 219 in |
| Dig Depth - Extended | 216 in |
| Load Height - Extended | 176 in |
| Bucket Dig Force | 12,809 lb |
| Reach From Swivel - Extended | 263 in |
| Reach at Load Height - Extended | 107 in |
| Bucket Dig Force - Extended | 12,809 lb |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 107 in |
| Bucket Breakout Force | 13,942 lb |
| Bucket Width | 89 in |
| Reach at Max Dump Height | 32 in |

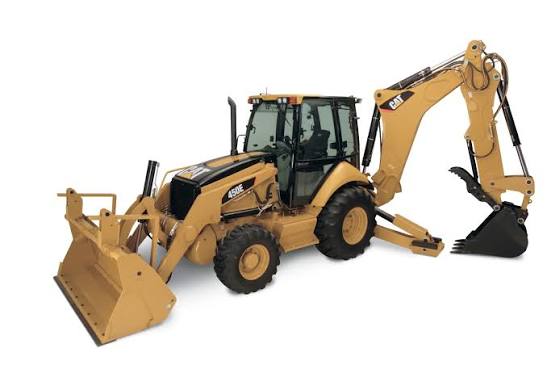

Comparable machines
