New Holland

LS120

Skid Steer Loader

Operating Weight
2,050 lb
Bucket Capacity
0.20 yd³
Max Speed
5.8 mph
Gross Power
18.0 hp
All skid steer loaders

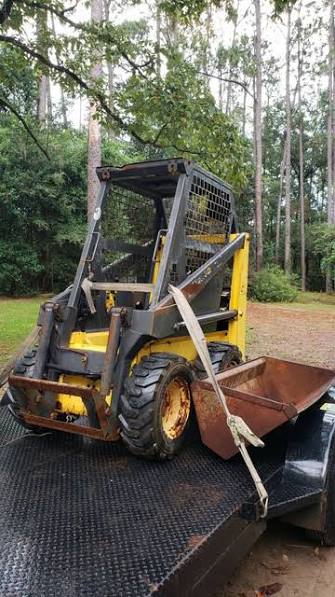

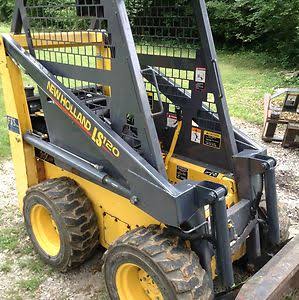

New Holland LS120 Skid Steer Loader
1 / 5
Image 1 of 5
Image: rbauction.co.uk

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,050 lb
Max Speed5.8 mph
Fuel Capacity6.0 gal
Hydraulic System Fluid Capacity9.1 gal
Tire Size12x16.5
Operating Voltage12 V
Alternator Supplied Amperage20 A
Engine Oil Fluid Capacity0.5 gal

Engine

Engine specifications
Engine ModelCH18
Displacement38 in³
Gross Power18.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.0 gal/min
Relief Valve Pressure1,600 psi
Pump TypeNew Holland double acting

Dimensions

Dimensions specifications
Ground Clearance7 in
Height - Top of Cab70 in
Wheelbase32 in
Width Over Tires36 in
Reach at Max Lift and Dump21 in
Length with Bucket94 in
Clearance at Max Lift and Dump64 in
Turning Radius from Center - inc bucket58 in
Turning Radius from Center - machine rear71 in

Loader

Loader specifications
Bucket Capacity0.20 yd³
Operating Load Rating600 lb
Tipping Angle1,199 °
Breakout Force1,409 psi
