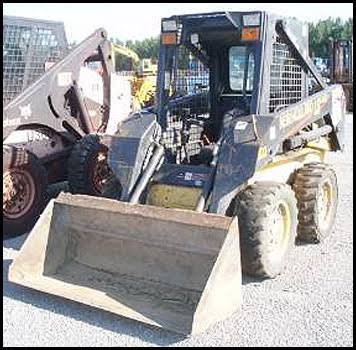

New Holland
Bobcat
773
Skid Steer Loader
17 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 4,396 lb |
|---|---|
| Max Speed | 6.8 mph |
| Fuel Capacity | 8.8 gal |
| Hydraulic System Fluid Capacity | 5.0 gal |
| Tire Size | 10x16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 40 A |
| Engine Oil Fluid Capacity | 1.5 gal |
| Cooling System Fluid Capacity | 2.5 gal |
| Chain Box Fluid Capacity - each side | 1.6 gal |
Engine
| Engine Model | N843 |
|---|---|
| Displacement | 92 in³ |
| Power Measured @ | 2,900 rpm |
| Gross Power | 30.0 hp |
| Number of Cylinders | 3 |
Hydraulic System
| Pump Flow Capacity | 10.8 gal/min |
|---|---|
| Relief Valve Pressure | 2,600 psi |
| Pump Type | New Holland double acting |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Height - Top of Cab | 74 in |
| Wheelbase | 39 in |
| Width Over Tires | 50 in |
| Reach at Max Lift and Dump | 25 in |
| Length with Bucket | 120 in |
| Clearance at Max Lift and Dump | 88 in |
| Turning Radius from Center - inc bucket | 71 in |
| Turning Radius from Center - machine rear | 56 in |
Loader
| Bucket Capacity | 0.50 yd³ |
|---|---|
| Operating Load Rating | 1,250 lb |
| Tipping Angle | 2,500 ° |
| Breakout Force | 3,404 psi |
