New Holland

LW110

Wheel Loader

Operating Weight
20,723 lb
Bucket Capacity - heaped
2.30 yd³
Gross Power
110.0 hp
Net Power
120.0 hp
All wheel loaders

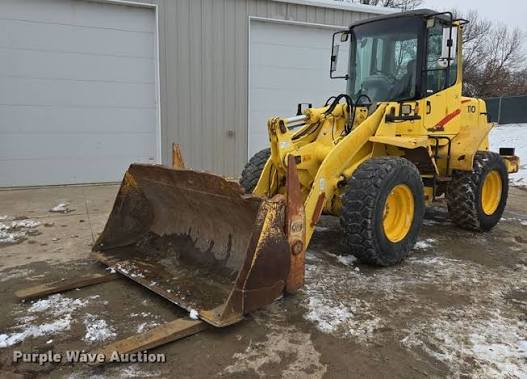

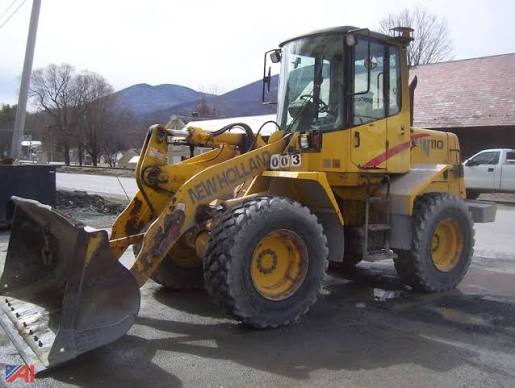

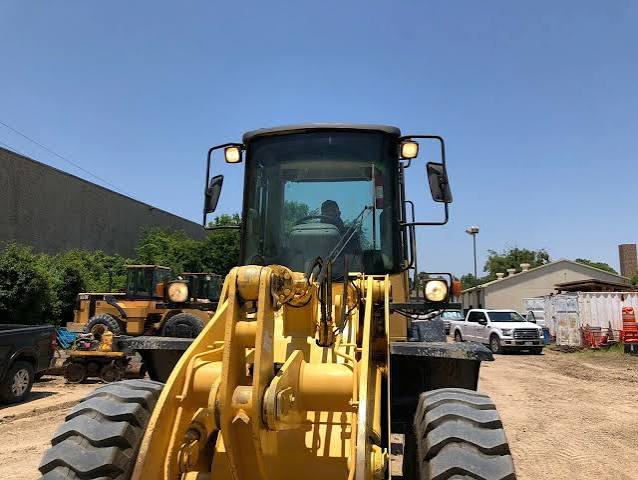

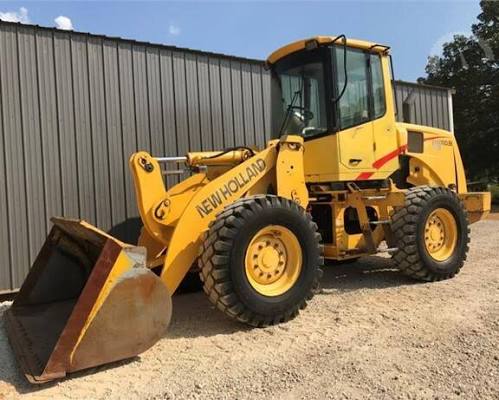

New Holland LW110 Wheel Loader
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,723 lb
Fuel Capacity45.0 gal
Tire Size17.5 x 25
Hydraulic System Fluid Capacity27.8 gal
Operating Voltage24 V
Turning Radius217 in
Rear Axle Oscillation40 °
Alternator Supplied Amperage55 A

Engine

Engine specifications
Engine Model8065T
Displacement360 in³
Gross Power110.0 hp
Net Power120.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab126 in
Wheelbase107 in
Width Over Tires90 in
Reach at Max Lift and Dump41 in
Length with Bucket on Ground258 in

Transmission

Transmission specifications
Max Speed - Forward22.2 mph
Max Speed - Reverse23.7 mph
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped2.30 yd³
Dump Clearance at Max Raise107 in
Breakout Force17,640 lb
Bucket Width97 in
