Case
21D
Wheel Loader
43 specifications
Zettelmeyer
ZL801B
- Operating Weight
- 12,588 lb
- Bucket Capacity - heaped
- 1.40 yd³
- Gross Power
- 69.8 hp
- Net Power
- 68.4 hp
1 / 5

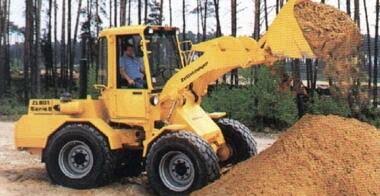

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 12,588 lb |
|---|---|
| Fuel Capacity | 25.1 gal |
| Tire Size | 14.5-20 |
| Hydraulic System Fluid Capacity | 19.9 gal |
| Static Tipping Weight | 9,171 lb |
| Operating Voltage | 12 V |
| Turning Radius | 169 in |
| Engine Oil Fluid Capacity | 2.8 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 2.3 gal |
| Rear Axle/Diff Fluid Capacity | 3.0 gal |
Engine
| Engine Model | BF 4L 1011T |
|---|---|
| Displacement | 167 in³ |
| Power Measured @ | 2,650 rpm |
| Gross Power | 69.8 hp |
| Net Power | 68.4 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 22.5 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.5 s |
| Dump Time | 1.0 s |
| Relief Valve Setting | 3,150 psi |
| Pump Type | gear type tandem |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 117 in |
| Wheelbase | 83 in |
| Width Over Tires | 76 in |
| Reach at Max Lift and Dump | 31 in |
| Length with Bucket on Ground | 214 in |
| Hinge Pin - Max Height | 126 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic full powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 101 in |
| Breakout Force | 13,489 lb |
| Bucket Width | 81 in |
