New Holland
LW110.B
- Operating Weight
- 23,693 lb
- Bucket Capacity - heaped
- 2.00 yd³
- Gross Power
- 110.0 hp
- Net Power
- 119.0 hp
1 / 5

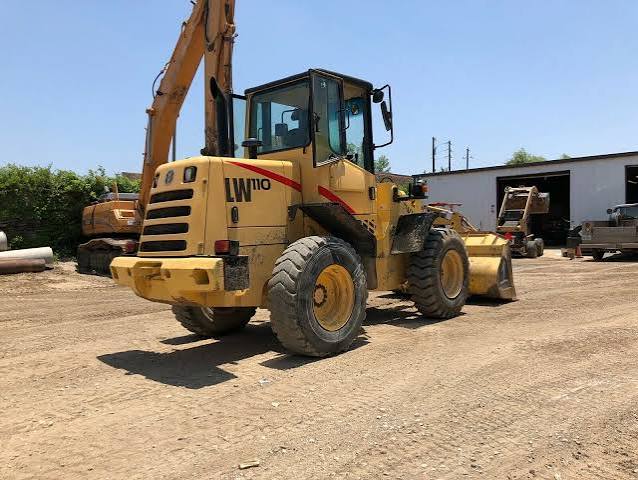

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 23,693 lb |
|---|---|
| Fuel Capacity | 50.0 gal |
| Tire Size | 17.5x25 12PR L3 |
| Hydraulic System Fluid Capacity | 30.1 gal |
| Static Tipping Weight | 16,365 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 3.2 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Transmission Fluid Capacity | 5.0 gal |
Engine
| Engine Model | 445T/M2 |
|---|---|
| Displacement | 275 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 110.0 hp |
| Net Power | 119.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbo |
| Torque Measured @ | 1,400 rpm |
| Torque Rise | 14.0 % |
Hydraulic System
| Pump Flow Capacity | 35.4 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 3.2 s |
| Dump Time | 2.6 s |
| Relief Valve Setting | 3,626 psi |
| Pump Type | variable-displacement piston pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 126 in |
| Wheelbase | 109 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 268 in |
| Hinge Pin - Max Height | 143 in |
Transmission
| Max Speed - Forward | 23.4 mph |
|---|---|
| Max Speed - Reverse | 15.3 mph |
| Transmission Type | countershaft power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Bucket Capacity - struck | 1.80 yd³ |
| Dump Clearance at Max Raise | 104 in |
| Bucket Width | 97 in |
