New Holland

LW170

Wheel Loader

Operating Weight
30,931 lb
Bucket Capacity - heaped
3.51 yd³
Gross Power
170.0 hp
Net Power
182.0 hp
All wheel loaders

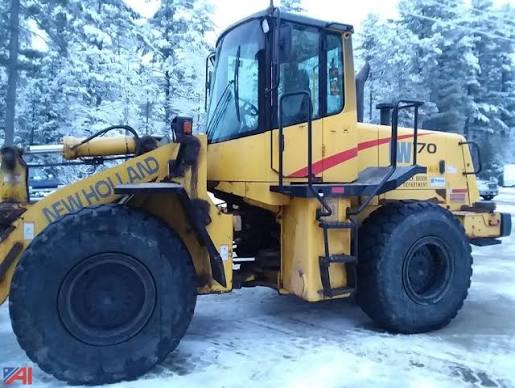

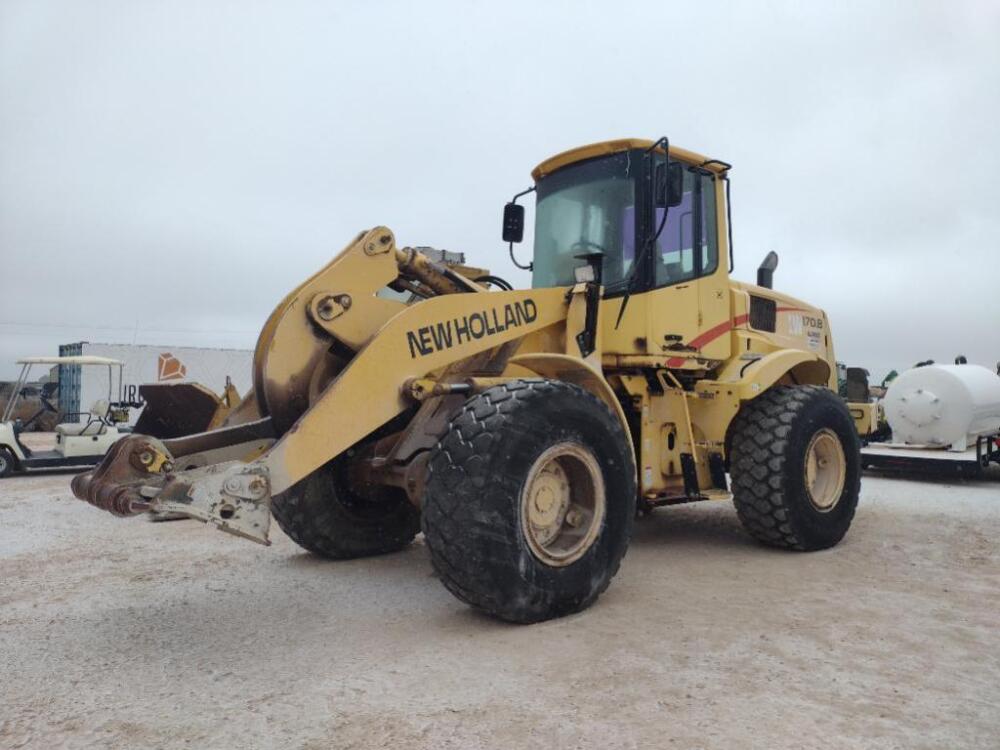

New Holland LW170 Wheel Loader
1 / 5
Image 1 of 5
Image: bid.ironboundauctions.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,931 lb
Fuel Capacity58.2 gal
Tire Size205x25 XHA
Hydraulic System Fluid Capacity39.7 gal
Static Tipping Weight24,405 lb
Operating Voltage24 V
Turning Radius236 in
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine Model6CT 8.3
Displacement507 in³
Power Measured @2,300 rpm
Gross Power170.0 hp
Net Power182.0 hp
Number of Cylinders6

Hydraulic System

Hydraulic System specifications
Pump TypePilot

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab131 in
Wheelbase121 in
Width Over Tires98 in
Reach at Max Lift and Dump48 in
Length with Bucket on Ground299 in
Hinge Pin - Max Height154 in

Transmission

Transmission specifications
Max Speed - Forward22.4 mph
Max Speed - Reverse24.0 mph
Transmission Typeautomatic countershaft
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped3.51 yd³
Dump Clearance at Max Raise110 in
Breakout Force29,542 lb
Bucket Width107 in
