Pel-Job
Komatsu
PC20R-8
Mini Excavator
47 specifications
1 / 5

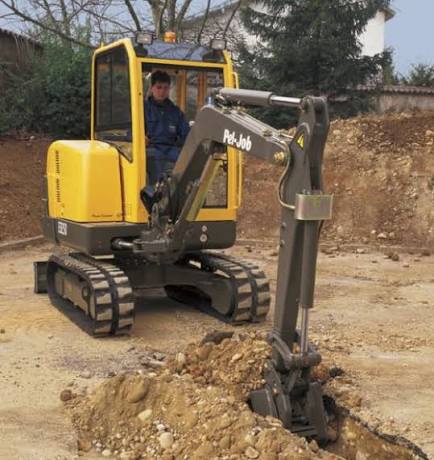

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 6,008 lb |
|---|---|
| Fuel Capacity | 13.0 gal |
| Hydraulic Pump Flow Capacity | 11.3 gal/min |
| Hydraulic System Fluid Capacity | 12.7 gal |
| Hydraulic System Relief Valve Pressure | 3,336 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 A |
| Engine Oil Capacity | 1.4 gal |
| Cooling System Fluid Capacity | 1.6 gal |
Engine
| Engine Model | S3L2 |
|---|---|
| Displacement | 81 in³ |
| Power Measured @ | 2,800 rpm |
| Gross Power | 27.2 hp |
| Net Power | 23.0 hp |
| Number of Cylinders | 3 |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 57 lb-ft |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Height - Top of Cab | 95 in |
| Length of Track on Ground | 57 in |
| Tail Swing Radius | 50 in |
| Width to Outside of Tracks | 59 in |
| Removal Counterweight Clearance | 23 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Number of Track Rollers per Side | 3 |
| Max Travel Speed | 2.2 mph |
| Shoe Size | 12 in |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 100 in |
|---|---|
| Max Reach Along Ground | 176 in |
| Max Vertical Wall Digging Depth | 79 in |
| Max Loading Height | 124 in |
| Shipping Length of Unit | 167 in |
| Max Cutting Height | 172 in |
| Shipping Height of Unit | 95 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.20 yd³ |
| Minimum Bucket Capacity | 0.10 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 111 in |
|---|---|
| Max Cutting Height | 179 in |
| Max Loading Height | 131 in |
| Max Vertical Wall Digging Depth | 91 in |
| Max Reach Along Ground | 187 in |
| Shipping Height of Unit | 95 in |
| Shipping Length of Unit | 167 in |
