Pel-Job

EB300

Mini Excavator

Operating Weight
6,008 lb
Max Digging Depth
100 in
Gross Power
27.2 hp
Net Power
23.0 hp
All mini excavators

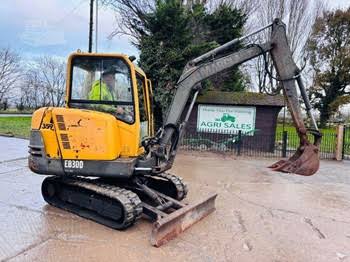

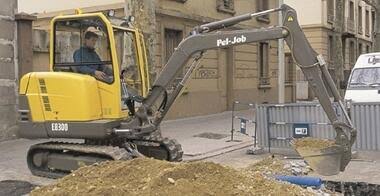

Pel-Job EB300 Mini Excavator
1 / 5
Image 1 of 5
Image: pebexparts.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,008 lb
Fuel Capacity13.0 gal
Hydraulic Pump Flow Capacity11.3 gal/min
Hydraulic System Fluid Capacity12.7 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage50 A
Engine Oil Capacity1.4 gal
Cooling System Fluid Capacity1.6 gal

Engine

Engine specifications
Engine ModelS3L2
Displacement81 in³
Power Measured @2,800 rpm
Gross Power27.2 hp
Net Power23.0 hp
Number of Cylinders3
Torque Measured @1,600 rpm
Max Torque57 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab95 in
Length of Track on Ground57 in
Tail Swing Radius50 in
Width to Outside of Tracks59 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side3
Max Travel Speed2.2 mph
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth100 in
Max Reach Along Ground176 in
Max Vertical Wall Digging Depth79 in
Max Loading Height124 in
Max Cutting Height172 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth111 in
Max Cutting Height179 in
Max Loading Height131 in
Max Vertical Wall Digging Depth91 in
Max Reach Along Ground187 in
