Pel-Job

EB300XT

Mini Excavator

Operating Weight
6,947 lb
Max Digging Depth
108 in
Gross Power
27.2 hp
Net Power
23.0 hp
All mini excavators

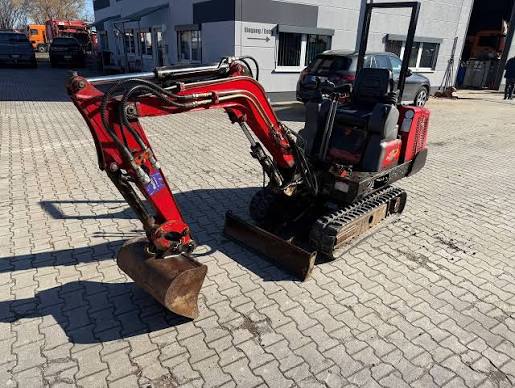

Pel-Job EB300XT Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,947 lb
Fuel Capacity13.0 gal
Hydraulic Pump Flow Capacity11.3 gal/min
Hydraulic System Fluid Capacity12.7 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage50 A
Engine Oil Capacity1.4 gal
Cooling System Fluid Capacity1.6 gal

Engine

Engine specifications
Engine ModelS3L2
Displacement81 in³
Power Measured @2,800 rpm
Gross Power27.2 hp
Net Power23.0 hp
Number of Cylinders3
Torque Measured @1,600 rpm
Max Torque57 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab95 in
Length of Track on Ground57 in
Tail Swing Radius50 in
Width to Outside of Tracks59 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side3
Max Travel Speed2.3 mph
Shoe Size12 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth108 in
Max Reach Along Ground182 in
Max Vertical Wall Digging Depth85 in
Max Loading Height128 in
Shipping Length of Unit173 in
Max Cutting Height175 in
Shipping Height of Unit95 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth120 in
Max Cutting Height183 in
Max Loading Height135 in
Max Vertical Wall Digging Depth97 in
Max Reach Along Ground194 in
Shipping Height of Unit95 in
Shipping Length of Unit173 in
