Pel-Job

EB406

Mini Excavator

Operating Weight
7,897 lb
Max Digging Depth
135 in
Gross Power
37.0 hp
Net Power
29.3 hp
All mini excavators

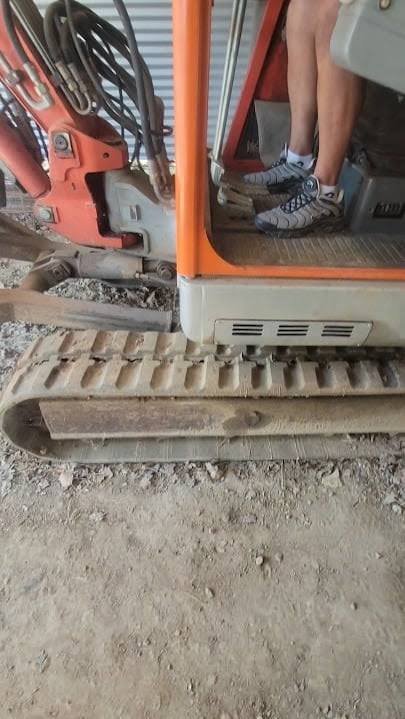

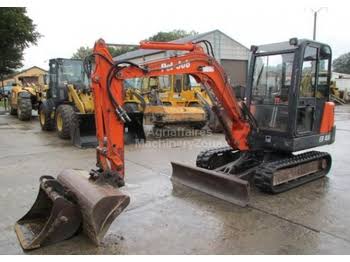

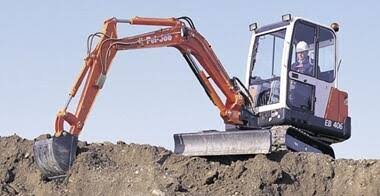

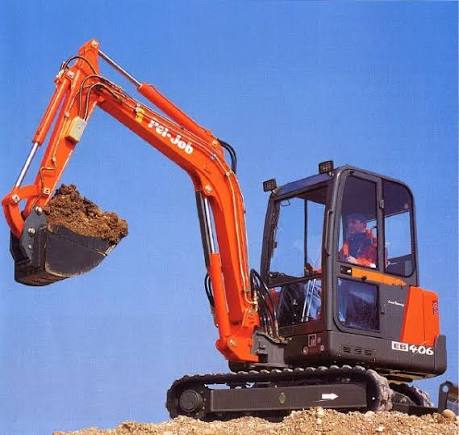

Pel-Job EB406 Mini Excavator
1 / 5
Image 1 of 5
Image: ebay.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,897 lb
Fuel Capacity17.5 gal
Hydraulic Pump Flow Capacity23.9 gal/min
Hydraulic System Fluid Capacity16.4 gal
Hydraulic System Relief Valve Pressure3,336 psi
Operating Voltage12 V
Alternator Supplied Amperage50 A
Engine Oil Capacity2.1 gal
Cooling System Fluid Capacity2.2 gal

Engine

Engine specifications
Engine ModelS4L2
Displacement107 in³
Power Measured @2,800 rpm
Gross Power37.0 hp
Net Power29.3 hp
Number of Cylinders4
Torque Measured @1,600 rpm
Max Torque75 lb-ft

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab97 in
Length of Track on Ground64 in
Tail Swing Radius54 in
Width to Outside of Tracks65 in
Removal Counterweight Clearance24 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.7 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth135 in
Max Reach Along Ground203 in
Max Vertical Wall Digging Depth88 in
Max Loading Height139 in
Shipping Length of Unit206 in
Max Cutting Height191 in
Shipping Height of Unit96 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth146 in
Max Cutting Height198 in
Max Loading Height148 in
Max Vertical Wall Digging Depth100 in
Max Reach Along Ground214 in
Shipping Height of Unit96 in
Shipping Length of Unit206 in
