Rottne

Solid F9-6

Forwarder

Operating Weight - 8wd
55,887 lb
Max Speed
15.6 mph
All forwarders

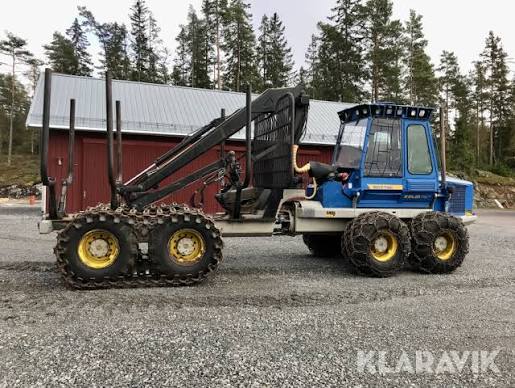

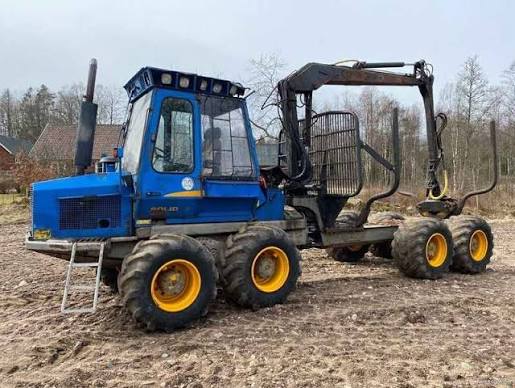

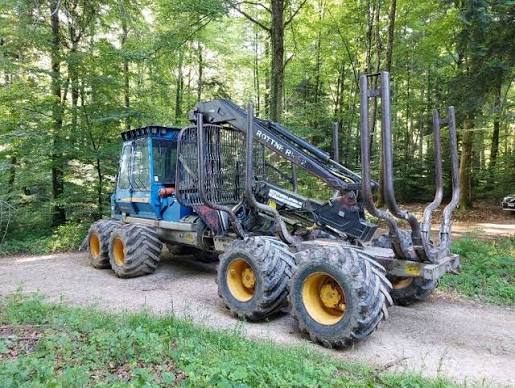

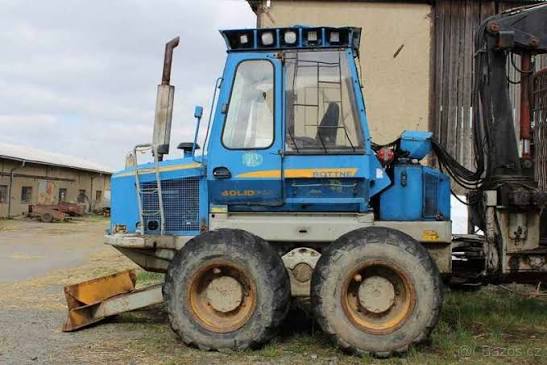

Rottne Solid F9-6 Forwarder
1 / 5
Image 1 of 5
Image: truck1-us.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd55,887 lb
Fuel Capacity37.0 gal
Hydraulic System Fluid Capacity43.6 gal
Alternator Supplied Amperage110 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd600/50x22.5 T428 SB

Engine

Engine specifications
Engine Model4045 HF 275
Power140.0 hp
Torque398 lb-ft

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure2,900 psi

Dimensions

Dimensions specifications
Ground Clearance24 in
Width Over Tires101 in
Length336 in

Transmission

Transmission specifications
Max Speed15.6 mph
Transmission TypeHydrostatic Mechanical
Number of Forward Gears2
Number of Reverse Gears2

Bunk

Bunk specifications
Load Weight - 8wd19,842 lb

Crane

Crane specifications
Max Reach272 in
Gross Lift Torque12,900 lb-ft
