Valmet
Caterpillar
554
Forwarder
33 specifications
1 / 5

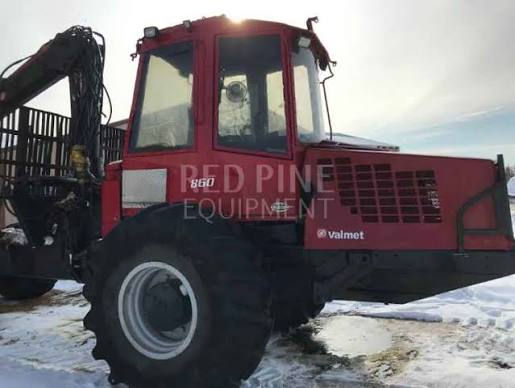

Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight - 8wd | 34,965 lb |
|---|---|
| Operating Weight - 6wd | 31,658 lb |
| Fuel Capacity | 42.0 gal |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Alternator Supplied Amperage | 100 A |
| Operating Voltage | 24 V |
| Front/Rear Tire Size - 8wd | 600/ 55x26.5 700/50x26.5 710/45x26.5 |
| Front/Rear Tire Size - 6wd | 600/65x34 700/55x34 710/55x34 Rear: 600/55x26.5 700/50x26.5 710/45x26.5 |
Engine
| Engine Model | 66 CTA Turbo w/ Commonrail.Tier 3 |
|---|---|
| Power | 188.0 hp |
| Torque | 594 lb-ft |
Hydraulic System
| Pump Type | Variable Piston Pump |
|---|---|
| Relief Valve Pressure | 3,400 psi |
| Flow Capacity | 76.0 gal/min |
Dimensions
| Ground Clearance | 28 in |
|---|---|
| Wheelbase | 66 in |
| Width Over Tires | 102 in |
| Length | 366 in |
| Length of Bunk Area | 196 in |
| Height to Top of crane | 150 in |
Transmission
| Max Speed | 15.0 mph |
|---|---|
| Transmission Type | Hydrostatic |
Bunk
| Load Weight - 8wd | 30,865 lb |
|---|---|
| Load Weight - 6wd | 30,865 lb |
Crane
| Max Reach | 307 in |
|---|---|
| Gross Lift Torque | 84,699 lb-ft |
| Crane Type | CRF 10 |
| Gross Slew Torque | 21,170 lb-ft |
