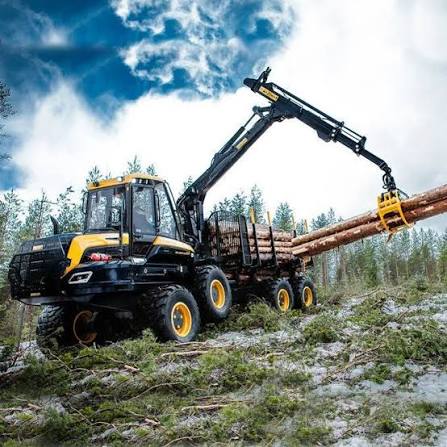

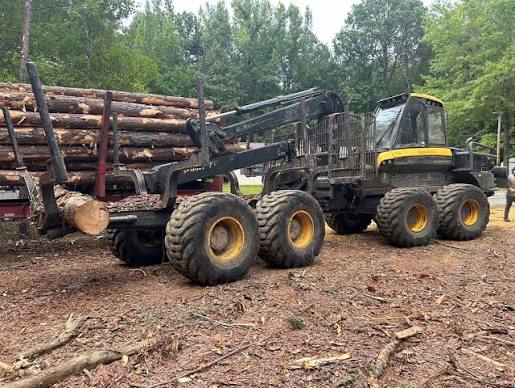

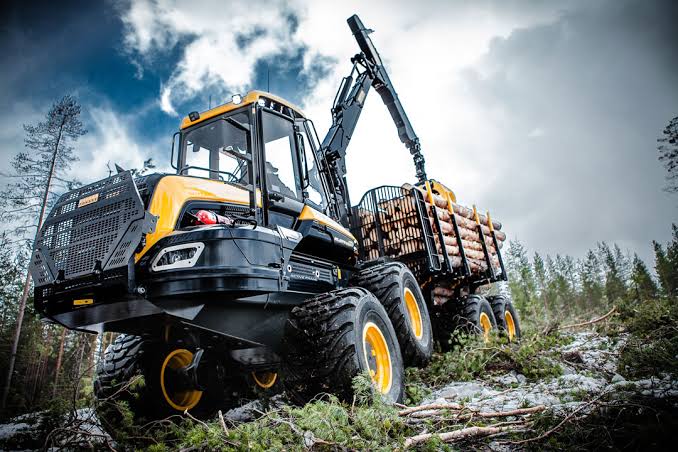

Ponsse
Caterpillar
554
Forwarder
33 specifications
1 / 5
Image 1 of 5
Specifications
20 data points
Operating Specifications
| Operating Weight - 6wd | 46,297 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Front/Rear Tire Size - 8wd | 750/55-26.5 / 750/55-26.5 |
| Front/Rear Tire Size - 6wd | 700/70-34 / 750/55-26.5 |
Engine
| Engine Model | OM906LA |
|---|---|
| Torque Measured @ | 1,500 rpm |
| Power | 275.0 hp |
| Torque | 811 lb-ft |
Hydraulic System
| Pump Type | Load-sensing system |
|---|---|
| Relief Valve Pressure | 3,408 psi |
Dimensions
| Ground Clearance | 30 in |
|---|---|
| Width Over Tires | 124 in |
| Length | 443 in |
| Height to Top of crane | 154 in |
Bunk
| Load Area | 26.83 yd³ |
|---|---|
| Load Weight - 6wd | 39,683 lb |
Crane
| Max Reach | 374 in |
|---|---|
| Gross Lift Torque | 106,945 lb-ft |
| Crane Type | Ponsse K100 |
