Tigercat

1075

Forwarder

Operating Weight - 8wd
51,035 lb
Max Speed
12.0 mph
All forwarders

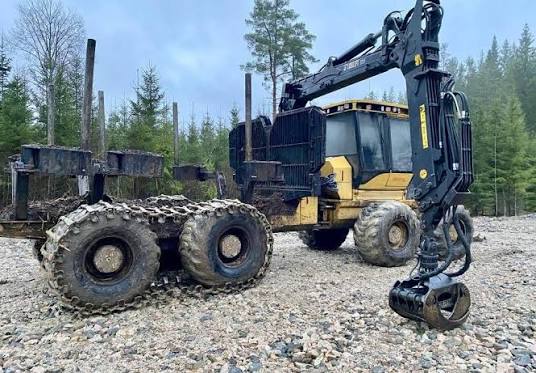

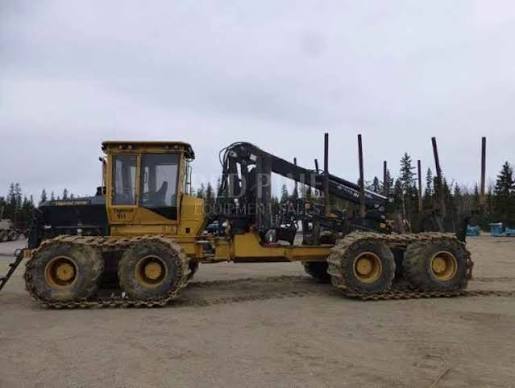

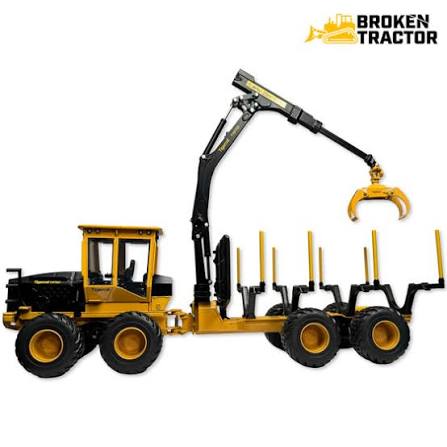

Tigercat 1075 Forwarder
1 / 5
Image 1 of 5
Image: tigercat.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - 8wd51,035 lb
Fuel Capacity50.2 gal
Hydraulic System Fluid Capacity33.9 gal
Alternator Supplied Amperage140 A
Operating Voltage24 V
Front/Rear Tire Size - 8wd750/55x26.5

Engine

Engine specifications
Engine Model906 Tier III
Power Measured @2,200 rpm
Power275.0 hp

Hydraulic System

Hydraulic System specifications
Pump Typevariable displacement axial piston

Dimensions

Dimensions specifications
Ground Clearance30 in
Width Over Tires133 in
Length432 in
Length of Bunk Area131 in

Transmission

Transmission specifications
Max Speed12.0 mph
Transmission TypeHydrostatic 2-speed gearbox

Bunk

Bunk specifications
Load Area26.83 yd³
Load Weight - 8wd44,100 lb

Crane

Crane specifications
Max Reach307 in
Gross Lift Torque111,349 lb-ft
Crane TypeLoglift F111-F78 with telescoopic stick
Gross Slew Torque30,250 lb-ft
