Sakai

SV512TF

Padfoot Compactor

Operating Weight
28,660 lb
Max Speed
6.3 mph
Drum Width
84 in
Gross Power
114.7 hp
All padfoot compactors

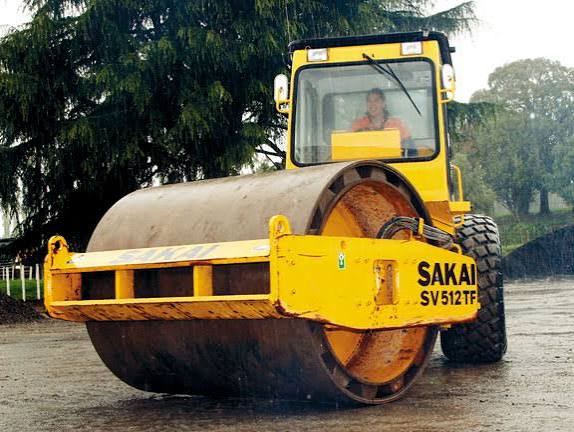

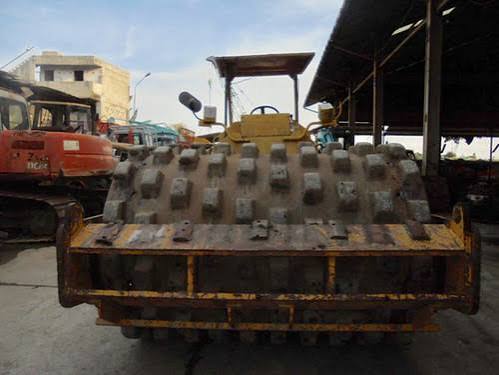

Sakai SV512TF Padfoot Compactor
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight28,660 lb
Max Speed6.3 mph
Fuel Capacity66.1 gal
Hydraulic System Fluid Capacity13.3 gal
Operating Voltage24 V

Engine

Engine specifications
Engine Model1004-40TW diesel engine
Displacement244 in³
Gross Power114.7 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab111 in
Wheelbase10 in
Width Over Tires91 in
Overall Length w/o Blade227 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26-8PR(OR)

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 137 vpm
Centrifugal Force - High55,078 lb
Drum Diameter65 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low41,814 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 228 vpm
