Sakai

SV700T

Padfoot Compactor

Operating Weight
33,069 lb
Max Speed
6.3 mph
Drum Width
84 in
Gross Power
166.3 hp
All padfoot compactors

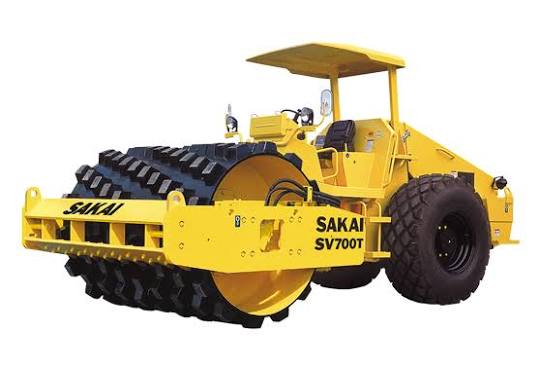

Sakai SV700T Padfoot Compactor
1 / 5
Image 1 of 5
Image: multiequipindo.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight33,069 lb
Max Speed6.3 mph
Fuel Capacity79.3 gal
Hydraulic System Fluid Capacity16.5 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelBB-6BG1TRJ
Displacement396 in³
Power Measured @2,200 rpm
Gross Power166.3 hp
Number of Cylinders4
Aspirationturbocharged

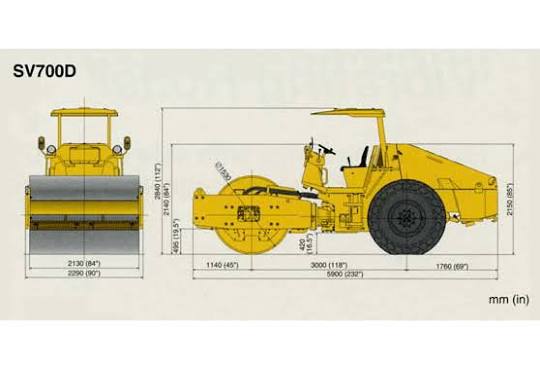

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab113 in
Wheelbase10 in
Width Over Tires91 in
Overall Length w/o Blade233 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26-8PR (OR)

Drum

Drum specifications
Drum Width84 in
Vibration Frequency 137 vpm
Centrifugal Force - High61,823 lb
Drum Diameter63 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads140
Centrifugal Force - Low49,458 lb
Nominal Amplitude - Low0 in
Vibratory Frequency 228 vpm
