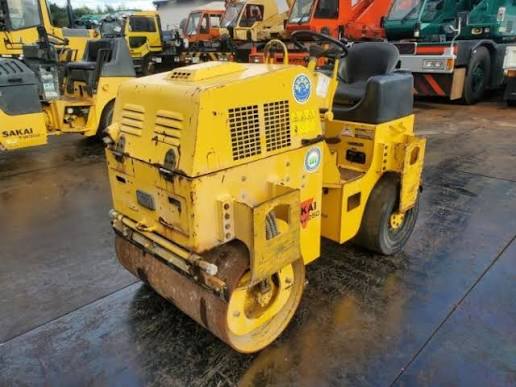

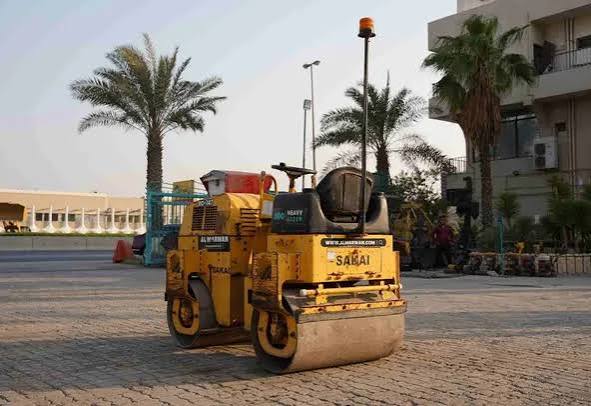

Sakai
Ingersoll Rand
DD14S
Smooth Drum Roller
17 specifications
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Operating Weight | 3,042 lb |
|---|---|
| Max Speed | 3.2 mph |
| Fuel Capacity | 4.0 gal |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 10.6 gal |
Engine
| Engine Model | 3TNE-68 |
|---|---|
| Displacement | 48 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 13.9 hp |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 59 in |
| Wheelbase | 4 in |
| Overall Length | 7 in |
| Overall Width | 44 in |
Tires & Wheels
| Tires | 23/8.5-12-4PR(OR) |
|---|
Drum
| Drum Width | 39 in |
|---|---|
| Drum Diameter | 22 in |
| Vibration Frequency 1 | 53 vpm |
| Centrifugal Force - MEd | 2,070 lb |
Comparable machines
Other smooth drum rollers in a similar weight class.
