Samsung

SE240 LC-3

Excavator

Operating Weight
51,809 lb
Max Digging Depth
239 in
Max Digging Depth
259 in
Net Power
170.0 hp
All excavators

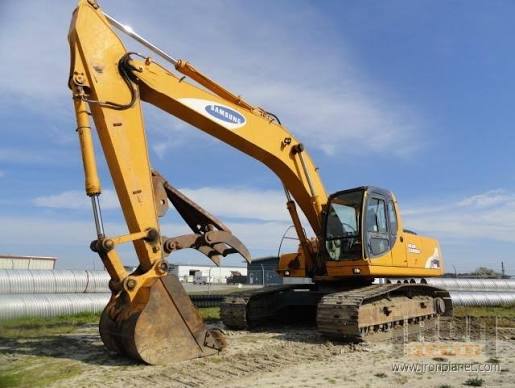

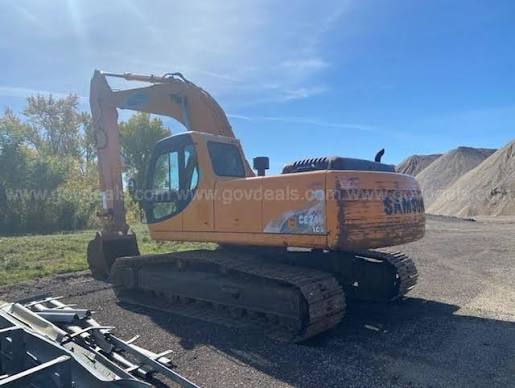

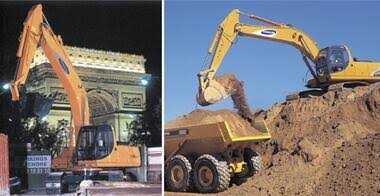

Samsung SE240 LC-3 Excavator
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

50 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,809 lb
Fuel Capacity92.5 gal
Hydraulic Pump Flow Capacity121.6 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine ModelC8.3-C
Displacement360 in³
Power Measured @2,000 rpm
Net Power170.0 hp
Torque Measured @1,500 rpm
Max Torque553 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab115 in
Length of Track on Ground152 in
Tail Swing Radius119 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge102 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth239 in
Max Reach Along Ground370 in
Max Loading Height265 in
Max Vertical Wall Digging Depth185 in
Max Cutting Height380 in
Shipping Length of Unit406 in
Shipping Height of Unit132 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³
Maximum Bucket Capacity1.80 yd³
Minimum Bucket Capacity0.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth259 in
Max Vertical Wall Digging Depth226 in
Max Cutting Height379 in
Max Loading Height263 in
Max Reach Along Ground381 in
Shipping Length of Unit404 in
Shipping Height of Unit127 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth276 in
Max Cutting Height384 in
Max Loading Height269 in
Max Vertical Wall Digging Depth241 in
Max Reach Along Ground397 in
Shipping Length of Unit400 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth302 in
Max Cutting Height383 in
Max Reach Along Ground417 in
Max Loading Height269 in
Max Vertical Wall Dig Depth247 in
Shipping Length of Unit404 in
