Samsung

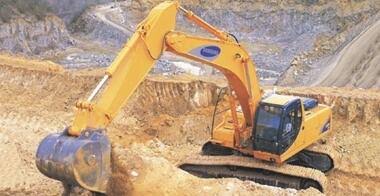

SE280 LC-3
- Operating Weight
- 61,289 lb
- Max Digging Depth
- 270 in
- Max Digging Depth
- 291 in
- Net Power
- 197.0 hp
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 61,289 lb |
|---|---|
| Fuel Capacity | 124.2 gal |
| Hydraulic Pump Flow Capacity | 132.1 gal/min |
| Hydraulic System Fluid Capacity | 87.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.8 gal |
| Cooling System Fluid Capacity | 7.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.0 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | C8.3-C |
|---|---|
| Displacement | 505 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 215.0 hp |
| Net Power | 197.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 629 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 120 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 125 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 2.8 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 50 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 270 in |
|---|---|
| Max Reach Along Ground | 393 in |
| Max Loading Height | 263 in |
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 379 in |
| Shipping Length of Unit | 425 in |
| Shipping Height of Unit | 133 in |
Bucket
| Reference Bucket Capacity | 1.70 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.11 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 291 in |
|---|---|
| Max Vertical Wall Digging Depth | 247 in |
| Max Cutting Height | 395 in |
| Max Loading Height | 277 in |
| Max Reach Along Ground | 414 in |
| Shipping Length of Unit | 420 in |
| Shipping Height of Unit | 126 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 328 in |
|---|---|
| Max Cutting Height | 411 in |
| Max Loading Height | 294 in |
| Max Vertical Wall Digging Depth | 277 in |
| Max Reach Along Ground | 450 in |
| Shipping Length of Unit | 422 in |
| Shipping Height of Unit | 143 in |
