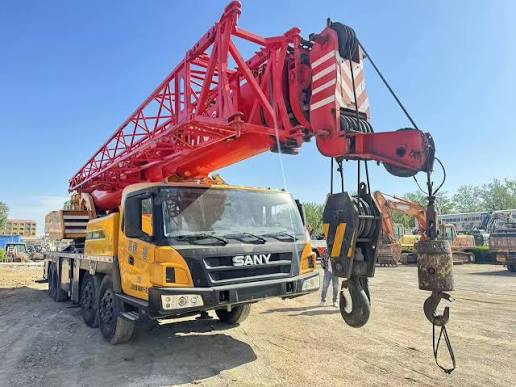

Sany
STC750
- Gross Power
- 368.8 hp
- Max Lift Capacity
- 165,347 lb
- Max Speed - Forward
- 49.8 mph
- Transport Width
- 109 in
1 / 5
Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 101,413 lb |
|---|---|
| Tire Size | 12.00R24-20PR |
| Carrier Fuel Capacity | 92.5 gal |
| Operating Voltage | 24 V |
| Number of Axels | 4 |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Transport Width | 109 in |
| Transport Height | 152 in |
| Transport Length | 556 in |
| Width w/ Outriggers Extended | 300 in |
| Upper Structure Tail Swing Radius | 163 in |
| Gradeability | 37.0 % |
| Carrier Length | 487 in |
| Angle of departure | 12 ° |
| Approach Angle | 20 ° |
Transmission
| Max Speed - Forward | 49.8 mph |
|---|
Boom
| Max Lift Capacity | 165,347 lb |
|---|---|
| Number of Sections | 5 |
| Max Height @ Max Raise Angle - no jib | 1,772 in |
| Min Height @ Max Raise Angle | 466 in |
| Max Elevating Angle | 80 ° |
CARRIER ENGINE
| Gross Power | 368.8 hp |
|---|---|
| Max Torque | 1,106 lb-ft |
| Torque Measured @ | 1,200 rpm |
| Power Measured @ | 2,100 rpm |
