Sany

SY230

Excavator

Operating Weight
50,486 lb
Max Digging Depth
274 in
Net Power
190.5 hp
All excavators

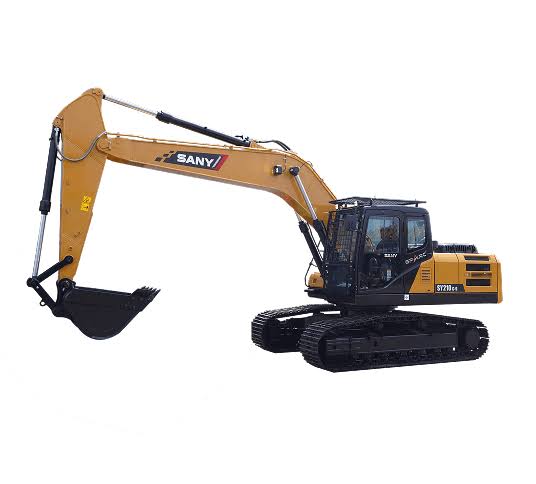

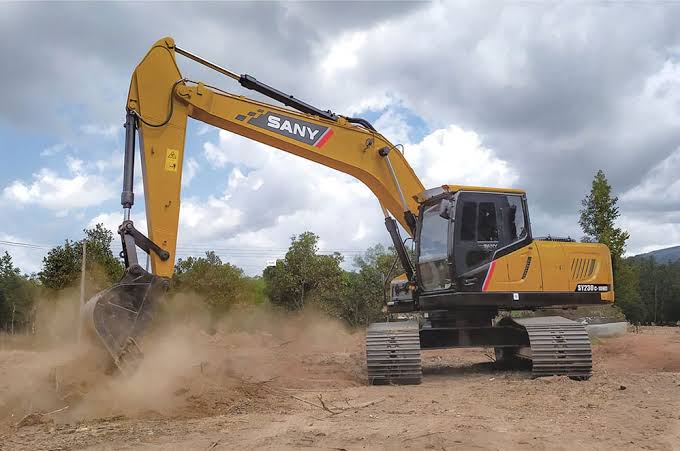

Sany SY230 Excavator
1 / 5
Image 1 of 5
Image: sanyexcavator.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,486 lb
Hydraulic Pump Flow Capacity120.5 gal/min

Engine

Engine specifications
Engine ModelQSB6.7-155
Displacement409 in³
Power Measured @2,200 rpm
Net Power190.5 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground144 in
Tail Swing Radius152 in
Width to Outside of Tracks118 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth274 in
Max Reach Along Ground401 in
Max Loading Height257 in
Max Vertical Wall Digging Depth238 in
Shipping Length of Unit385 in
Shipping Height of Unit125 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
