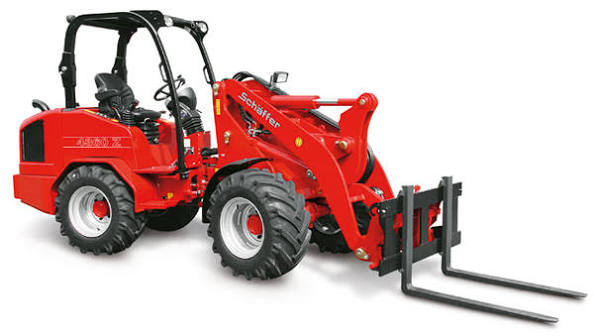

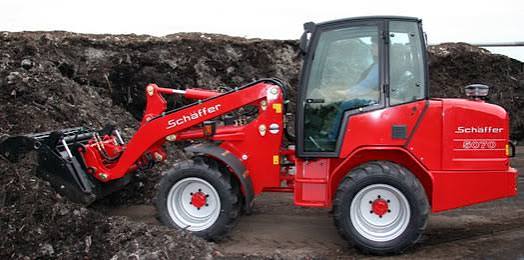

Schaffer
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 9,259 lb |
|---|---|
| Fuel Capacity | 12.7 gal |
| Tire Size | 15X55-17 |
| Hydraulic System Fluid Capacity | 13.3 gal |
| Static Tipping Weight | 5,071 lb |
Engine
| Engine Model | V2203 |
|---|---|
| Gross Power | 50.0 hp |
Hydraulic System
| Pump Flow Capacity | 33.3 gal/min |
|---|---|
| Relief Valve Setting | 5,000 psi |
Dimensions
| Height - Top of Cab | 88 in |
|---|---|
| Wheelbase | 69 in |
| Width Over Tires | 64 in |
| Reach at Max Lift and Dump | 23 in |
| Length with Bucket on Ground | 187 in |
| Hinge Pin - Max Height | 131 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.71 yd³ |
|---|---|
| Dump Clearance at Max Raise | 67 in |
| Breakout Force | 6,070 lb |
