Snorkel

TB66J

Aerial Lift

Max Platform Height
792 in
Overall Length
33 in
Overall Width
100 in
All aerial lifts

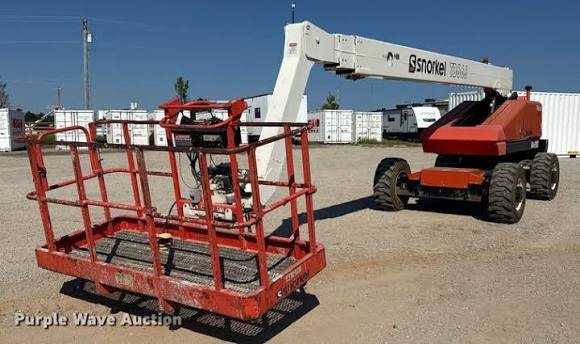

Snorkel TB66J Aerial Lift
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

24 data points

Engine

Engine specifications
Fuel Typegas/diesel

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase119 in
Overall Length33 in
Overall Width100 in
Overall Height - mast lowered107 in
Stowed Width96 in
Stowed Height109 in
Boom Type/SizeST J ft (0.00 m)
Platform Size60 in

Transmission

Transmission specifications
4WDStd

Tires & Wheels

Tires & Wheels specifications
Tire Size15x19.5

Performance

Performance specifications
Operating Weight25,001 lb
Max Speed3.0 mph
Tire Size15x19.5
Hydraulic System Fluid Capacity35.1 gal
Tire Fill/TypeFoam
Fuel Capacity40.0 gal

Capacity

Capacity specifications
Platform Capacity500 lb

Platform

Platform specifications
Max Platform Height792 in
Max Platform Weight Capacity500 lb
Platform Inner Length60 in
Platform Inner Width30 in
Max Horizontal Reach674 in
