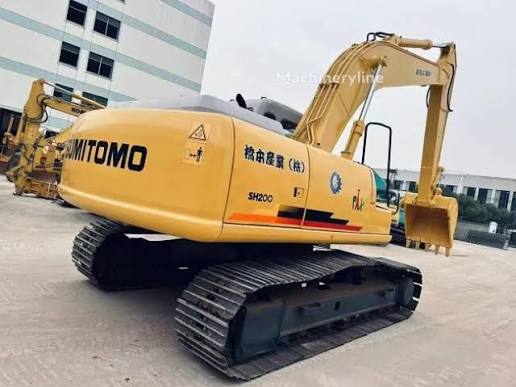

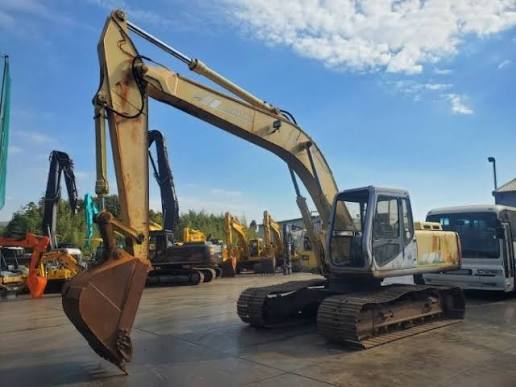

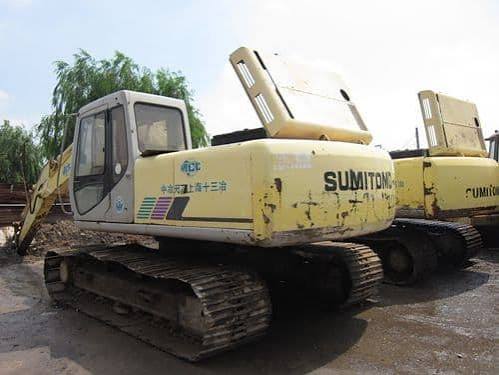

Sumitomo
SH200-2
- Operating Weight
- 42,549 lb
- Max Digging Depth
- 241 in
- Max Digging Depth
- 264 in
- Net Power
- 131.0 hp
1 / 5
Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 42,549 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 106.2 gal/min |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Hydraulic System Relief Valve Pressure | 4,978 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 25 A |
Engine
| Engine Model | A-6BG1T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 1,900 rpm |
| Net Power | 131.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 351 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 113 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 109 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 88 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 241 in |
|---|---|
| Max Reach Along Ground | 372 in |
| Max Loading Height | 254 in |
| Max Vertical Wall Digging Depth | 216 in |
| Max Cutting Height | 365 in |
| Shipping Length of Unit | 393 in |
| Shipping Height of Unit | 113 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.50 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 264 in |
|---|---|
| Max Vertical Wall Digging Depth | 240 in |
| Max Cutting Height | 373 in |
| Max Loading Height | 263 in |
| Max Reach Along Ground | 393 in |
| Shipping Length of Unit | 393 in |
| Shipping Height of Unit | 113 in |
