Sumitomo

SH200HD-3

Excavator

Operating Weight
44,974 lb
Max Digging Depth
223 in
Net Power
140.0 hp
All excavators

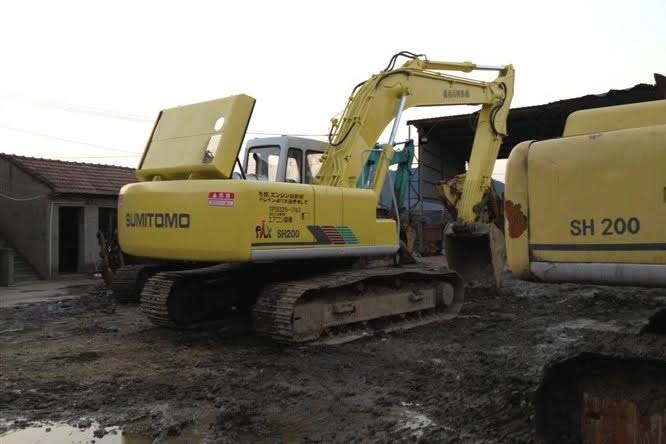

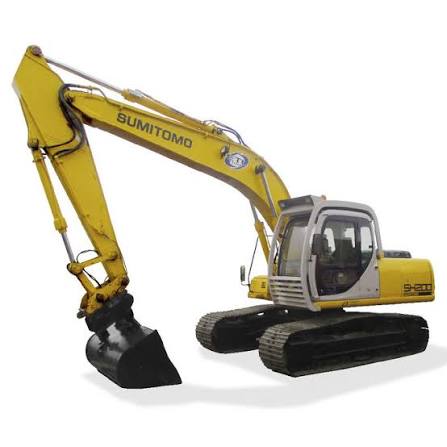

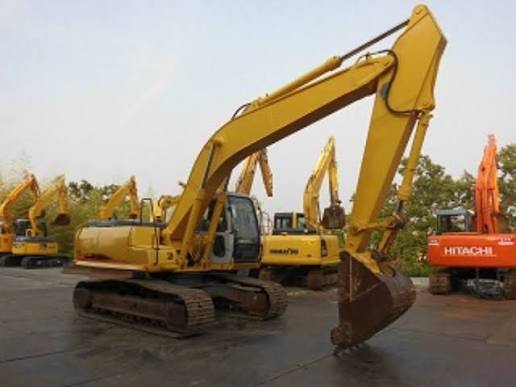

Sumitomo SH200HD-3 Excavator
1 / 5
Image 1 of 5
Image: shi.co.jp

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,974 lb
Fuel Capacity89.9 gal
Hydraulic System Fluid Capacity54.5 gal
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelBB-6BG1T
Displacement396 in³
Power Measured @1,950 rpm
Net Power140.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab114 in
Length of Track on Ground133 in
Tail Swing Radius109 in
Width to Outside of Tracks110 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge88 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth223 in
Max Reach Along Ground394 in
Max Loading Height312 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height427 in
Shipping Length of Unit370 in
Shipping Height of Unit115 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
