Sumitomo

SH200LC-3

Excavator

Operating Weight
42,990 lb
Max Digging Depth
265 in
Net Power
140.0 hp
All excavators

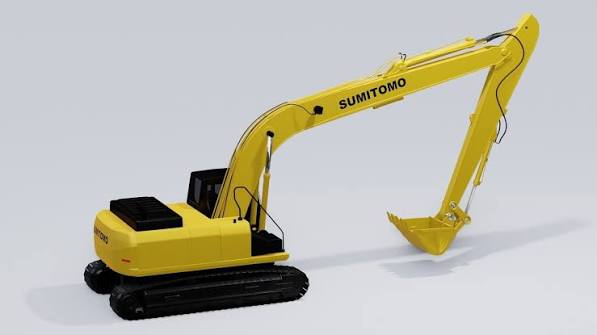

Sumitomo SH200LC-3 Excavator
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,990 lb
Fuel Capacity89.9 gal
Hydraulic System Fluid Capacity54.5 gal
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelBB-6BG1T
Displacement396 in³
Power Measured @1,950 rpm
Net Power140.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab114 in
Length of Track on Ground145 in
Tail Swing Radius108 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth265 in
Max Reach Along Ground393 in
Max Loading Height270 in
Max Vertical Wall Digging Depth240 in
Max Cutting Height380 in
Shipping Length of Unit371 in
Shipping Height of Unit115 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
