Sumitomo

SH210-5

Excavator

Operating Weight
44,093 lb
Max Digging Depth
263 in
Net Power
157.4 hp
All excavators

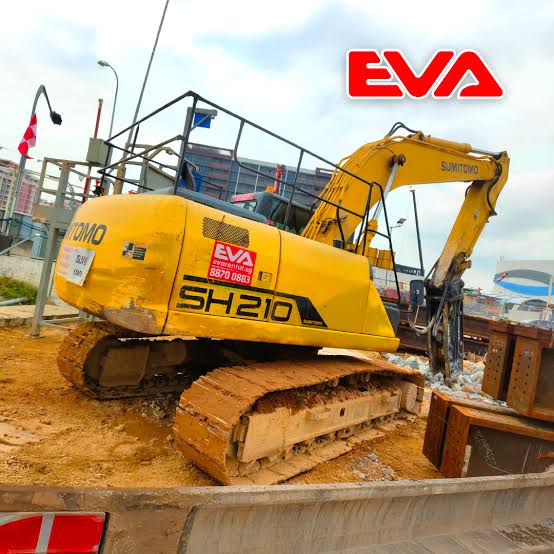

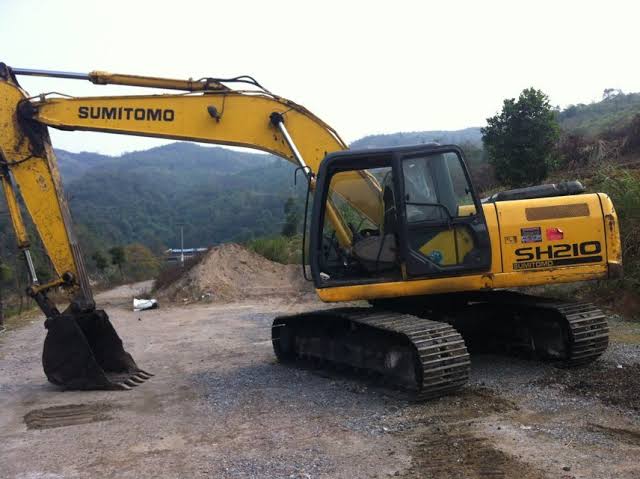

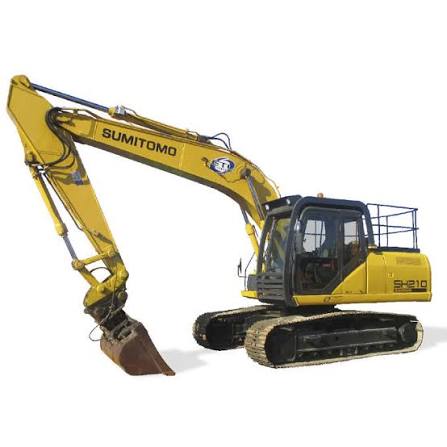

Sumitomo SH210-5 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,093 lb
Hydraulic Pump Flow Capacity111.5 gal/min
Hydraulic System Relief Valve Pressure5,439 psi

Engine

Engine specifications
Engine ModelA1-4HK1X
Displacement317 in³
Power Measured @1,800 rpm
Net Power157.4 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground133 in
Tail Swing Radius109 in
Width to Outside of Tracks110 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth263 in
Max Reach Along Ground390 in
Max Loading Height269 in
Max Vertical Wall Digging Depth235 in
Shipping Length of Unit371 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
