Sumitomo

SH220

Excavator

Operating Weight
50,354 lb
Max Digging Depth
250 in
Max Digging Depth
275 in
Net Power
153.0 hp
All excavators

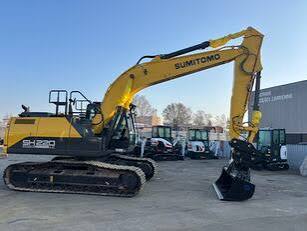

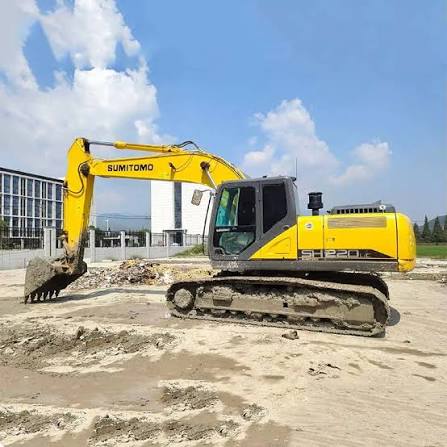

Sumitomo SH220 Excavator
1 / 5
Image 1 of 5
Image: sumitomokenki.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,354 lb
Fuel Capacity81.9 gal
Hydraulic System Fluid Capacity58.2 gal
Hydraulic System Relief Valve Pressure4,550 psi

Engine

Engine specifications
Engine Model6BG1T
Displacement396 in³
Power Measured @2,150 rpm
Net Power153.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab115 in
Length of Track on Ground137 in
Tail Swing Radius119 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth250 in
Max Reach Along Ground385 in
Max Loading Height248 in
Max Vertical Wall Digging Depth211 in
Max Cutting Height367 in
Shipping Length of Unit393 in
Shipping Height of Unit121 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
Maximum Bucket Capacity1.80 yd³
Minimum Bucket Capacity0.99 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth275 in
Max Vertical Wall Digging Depth245 in
Max Cutting Height383 in
Max Loading Height263 in
Max Reach Along Ground410 in
Shipping Length of Unit393 in
Shipping Height of Unit121 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth292 in
Max Cutting Height393 in
Max Loading Height272 in
Max Vertical Wall Digging Depth263 in
Max Reach Along Ground427 in
Shipping Length of Unit393 in
Shipping Height of Unit121 in
