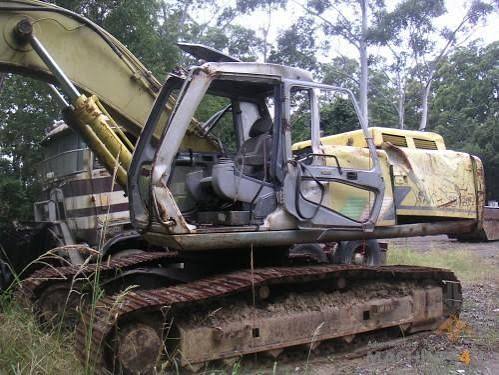

Sumitomo
SH220-2
- Operating Weight
- 50,706 lb
- Max Digging Depth
- 250 in
- Max Digging Depth
- 275 in
- Net Power
- 153.0 hp
1 / 5
Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 50,706 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 112.1 gal/min |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Hydraulic System Relief Valve Pressure | 4,978 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 25 A |
Engine
| Engine Model | A-6BG1T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 153.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,700 rpm |
| Max Torque | 398 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 137 in |
| Tail Swing Radius | 119 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 250 in |
|---|---|
| Max Reach Along Ground | 385 in |
| Max Loading Height | 248 in |
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 367 in |
| Shipping Length of Unit | 393 in |
| Shipping Height of Unit | 121 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.90 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 275 in |
|---|---|
| Max Vertical Wall Digging Depth | 245 in |
| Max Cutting Height | 383 in |
| Max Loading Height | 263 in |
| Max Reach Along Ground | 410 in |
| Shipping Length of Unit | 393 in |
| Shipping Height of Unit | 121 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 292 in |
|---|---|
| Max Cutting Height | 393 in |
| Max Loading Height | 272 in |
| Max Vertical Wall Digging Depth | 263 in |
| Max Reach Along Ground | 427 in |
| Shipping Length of Unit | 393 in |
| Shipping Height of Unit | 121 in |
