Sumitomo

SH225X-3

Excavator

Operating Weight
49,163 lb
Max Digging Depth
264 in
Net Power
138.2 hp
All excavators

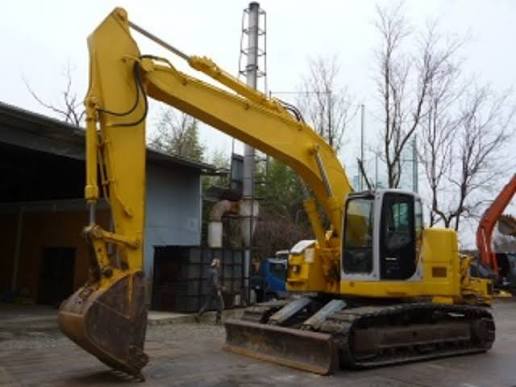

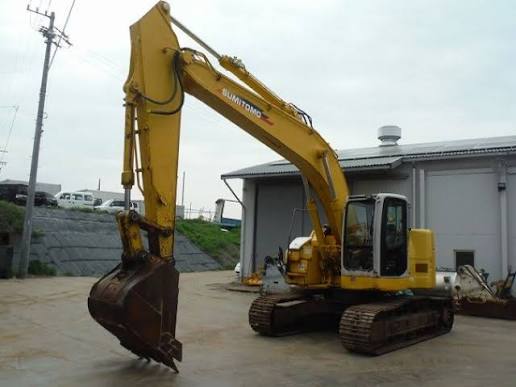

Sumitomo SH225X-3 Excavator
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,163 lb
Fuel Capacity70.1 gal
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelBB-6BG1T
Displacement396 in³
Power Measured @1,950 rpm
Net Power138.2 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Length of Track on Ground133 in
Tail Swing Radius83 in
Width to Outside of Tracks110 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge88 in
Max Travel Speed3.2 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth264 in
Max Reach Along Ground391 in
Max Loading Height317 in
Max Vertical Wall Digging Depth240 in
Max Cutting Height430 in
Shipping Length of Unit343 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
