Sumitomo

SH225X-3B

Excavator

Operating Weight
52,911 lb
Max Digging Depth
270 in
Net Power
153.5 hp
All excavators

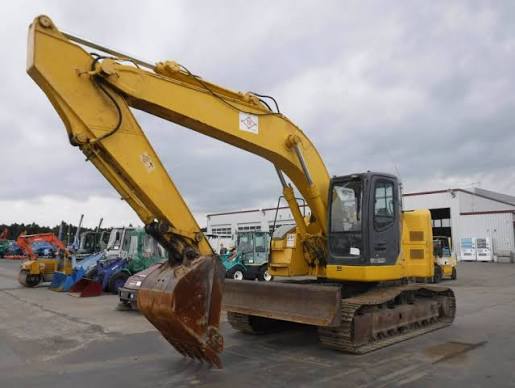

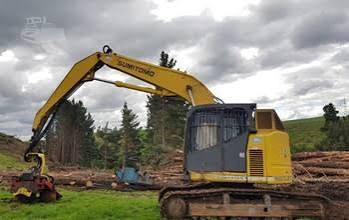

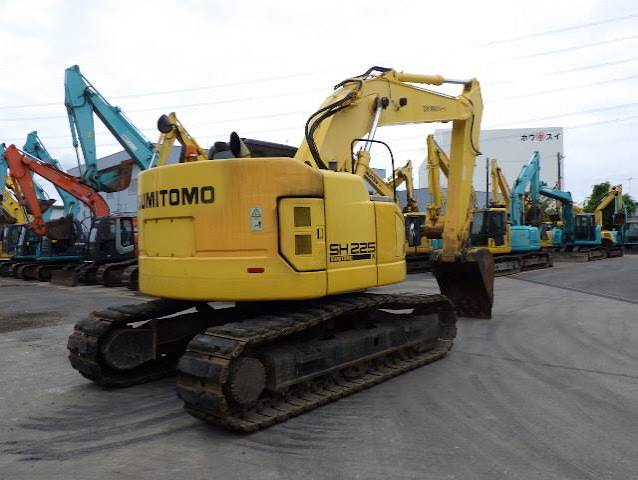

Sumitomo SH225X-3B Excavator
1 / 5
Image 1 of 5
Image: sumitomokenki.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,911 lb
Hydraulic Pump Flow Capacity100.4 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelAI-4HKIX
Displacement317 in³
Power Measured @1,900 rpm
Net Power153.5 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground133 in
Tail Swing Radius67 in
Width to Outside of Tracks110 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.2 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth270 in
Max Reach Along Ground384 in
Max Loading Height317 in
Max Vertical Wall Digging Depth240 in
Shipping Length of Unit369 in
Shipping Height of Unit128 in

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
