SH240-3

Excavator

Operating Weight
51,368 lb
Max Digging Depth
275 in
Net Power
165.0 hp
All excavators

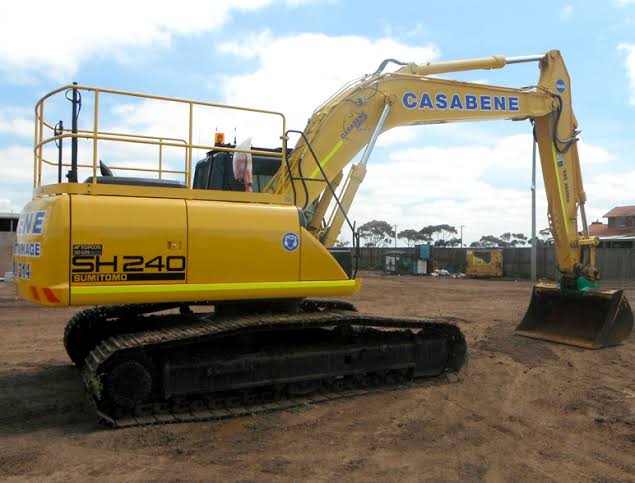

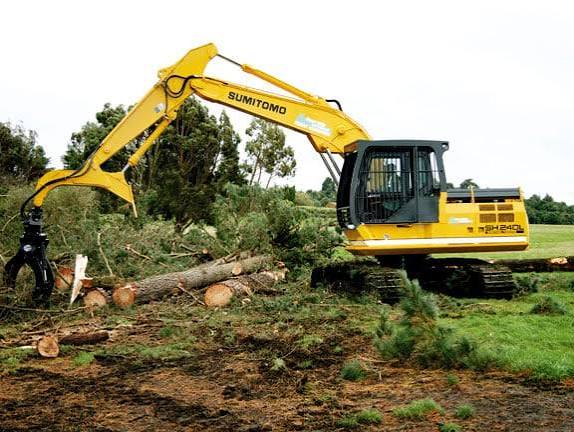

Sumitomo SH240-3 Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,368 lb
Fuel Capacity89.9 gal
Hydraulic System Fluid Capacity59.5 gal
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelBB-6BG1T
Displacement396 in³
Power Measured @2,150 rpm
Net Power165.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Length of Track on Ground151 in
Tail Swing Radius115 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge102 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth275 in
Max Reach Along Ground410 in
Max Loading Height267 in
Max Vertical Wall Digging Depth245 in
Max Cutting Height386 in
Shipping Length of Unit390 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity1.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm
