Sumitomo

SH240-5

Excavator

Operating Weight
53,793 lb
Max Digging Depth
272 in
Net Power
177.1 hp
All excavators

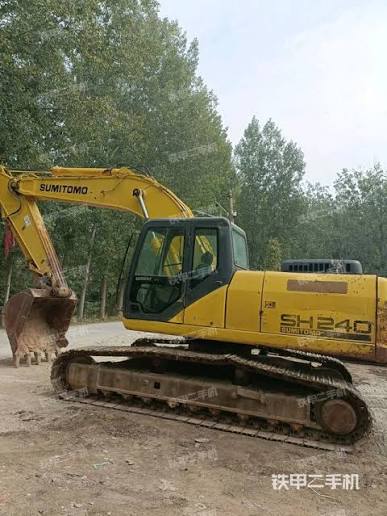

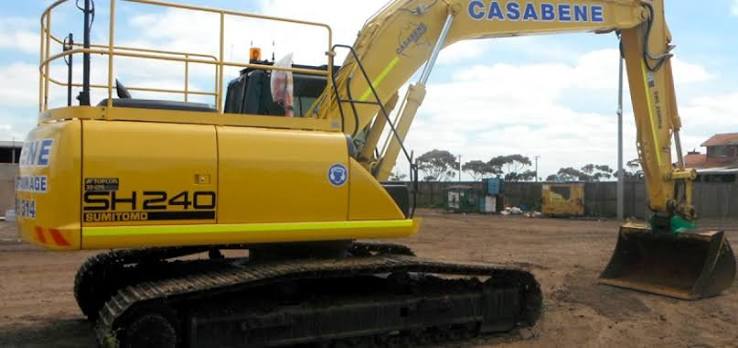

Sumitomo SH240-5 Excavator
1 / 5
Image 1 of 5
Image: dir.indiamart.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight53,793 lb
Hydraulic Pump Flow Capacity123.7 gal/min
Hydraulic System Relief Valve Pressure5,439 psi

Engine

Engine specifications
Engine ModelAH-4HK1X
Displacement317 in³
Power Measured @2,000 rpm
Net Power177.1 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Length of Track on Ground151 in
Tail Swing Radius117 in
Width to Outside of Tracks126 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth272 in
Max Reach Along Ground406 in
Max Loading Height267 in
Max Vertical Wall Digging Depth243 in
Shipping Length of Unit391 in
Shipping Height of Unit125 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
