Sunward

SWE225LC

Excavator

Operating Weight
49,825 lb
Max Digging Depth
265 in
Net Power
167.7 hp
All excavators

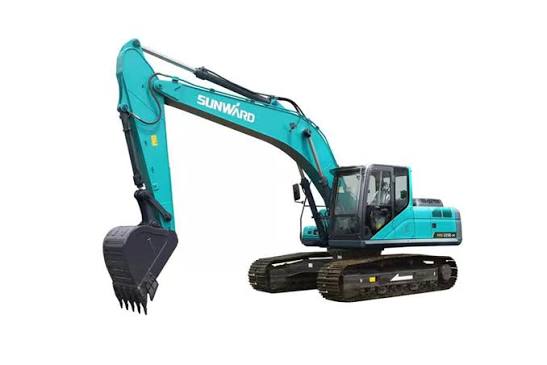

Sunward SWE225LC Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight49,825 lb
Fuel Capacity97.8 gal
Hydraulic Pump Flow Capacity116.3 gal/min
Hydraulic System Fluid Capacity66.1 gal
Hydraulic System Relief Valve Pressure4,699 psi

Engine

Engine specifications
Engine Model6BG1TC
Displacement396 in³
Net Power167.7 hp
Aspirationturbocharged
Max Torque514 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Tail Swing Radius109 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance43 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Max Travel Speed3.1 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth265 in
Max Reach Along Ground390 in
Max Loading Height268 in
Max Vertical Wall Digging Depth234 in
Max Cutting Height380 in
Shipping Length of Unit377 in
Shipping Height of Unit118 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm
