Tadano
Terex
A600
Rough Terrain Crane
31 specifications

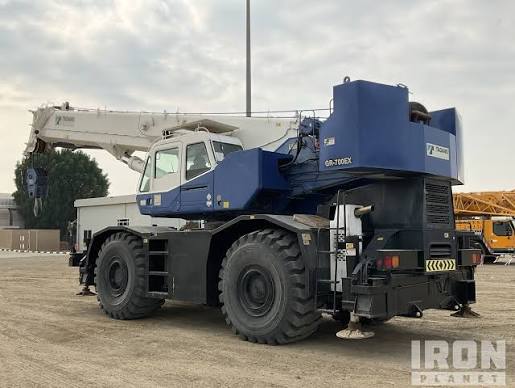

Tadano
GR-700EX
- Operating Weight
- 106,516 lb
- Max Lift Capacity
- 154,324 lb
- Max Speed - Forward
- 24.3 mph
- Gross Power
- 268.3 hp
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 106,516 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Tire Size | 29.5 - 25 |
Engine
| Engine Model | 6M60-TLU3B |
|---|---|
| Displacement | 461 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 268.3 hp |
| Aspiration | Turbo charged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 579 lb-ft |
| Engine Make | MITSUBISHI |
Dimensions
| Wheelbase | 156 in |
|---|---|
| Transport Width | 131 in |
| Transport Height | 150 in |
| Transport Length | 554 in |
| Width w/ Outriggers Extended | 284 in |
| Upper Structure Tail Swing Radius | 163 in |
| Carrier/Base Length | 322,638 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
| Transmission Type | Electronically controlled full automatic transmission |
Boom
| Max Lift Capacity | 154,324 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,733 in |
| Min Height @ Max Raise Angle | 454 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 5 |
| Swing Speed | 2 rpm |
