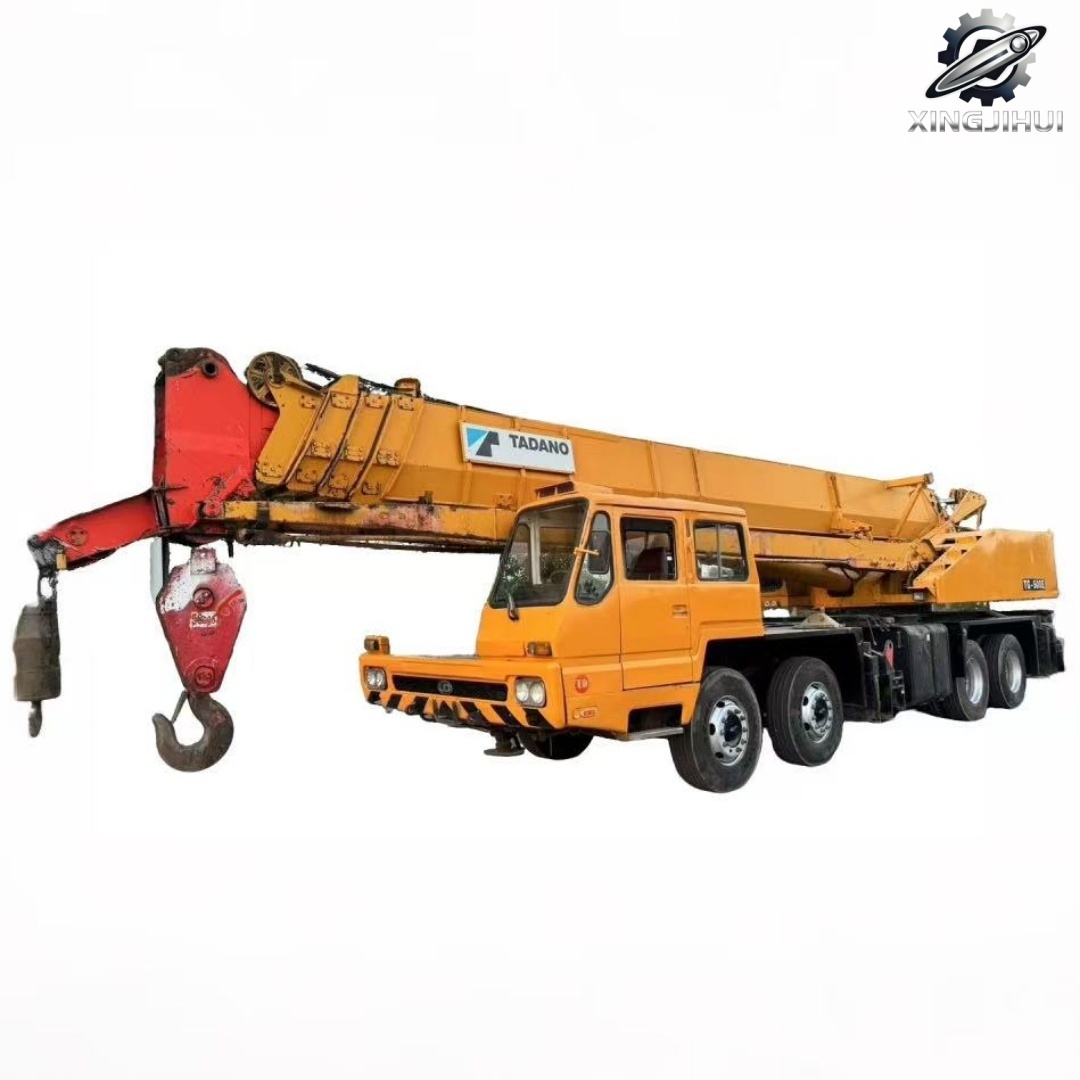

Tadano
TG-500E
- Operating Weight
- 85,539 lb
- Max Lift Capacity
- 110,231 lb
- Max Speed - Forward
- 42.3 mph
- Displacement
- 1,037 in³
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 85,539 lb |
|---|---|
| Operating Voltage | 24 V |
| Tire Size | 12R22.5 152/148K |
| Carrier Fuel Capacity | 79.3 gal |
| Upper Structure Hydraulic System Fluid Capacity | 162.5 gal |
| Alternator Supplied Amperage | 50 A |
Dimensions
| Transport Width | 111 in |
|---|---|
| Transport Height | 148 in |
| Transport Length | 511 in |
| Width w/ Outriggers Extended | 269 in |
| Upper Structure Tail Swing Radius | 142 in |
Transmission
| Max Speed - Forward | 42.3 mph |
|---|---|
| Number of Forward Gears | 7 |
| Number of Reverse Gears | 1 |
| Transmission Type | Synchromesh and constantmesh |
Boom
| Max Lift Capacity | 110,231 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,576 in |
| Min Height @ Max Raise Angle | 420 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 5 |
| Swing Speed | 2 rpm |
CARRIER ENGINE
| Gross Power | 335.3 hp |
|---|---|
| Displacement | 1,037 in³ |
| Power Measured @ | 2,200 rpm |
| Make | Tadano |
| Max Torque | 867 lb-ft |
| Torque Measured @ | 1,400 rpm |
| Number of cylinders | 8 |
