Tadano
Grove
RT625
Rough Terrain Crane
38 specifications
1 / 5

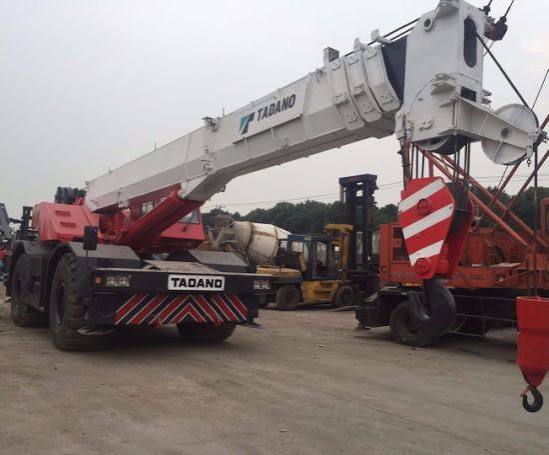

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 85,670 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Tire Size | 21.00 x 25 - 24 PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 195.5 gal |
Engine
| Engine Model | 6D22 |
|---|---|
| Displacement | 680 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 186.5 hp |
| Net Power | 179.7 hp |
| Number of Cylinders | 6 |
| Aspiration | Naturally aspirated |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 463 lb-ft |
| Engine Make | Mitsubishi |
| Stroke | 6 in |
| Bore | 5 in |
| Air cleaner | Dry type replacement element |
| Cooling system | Liquid pressurized recirculating by-pass |
| Radiator Core type | Fin and tube core thermostat controlled |
| Fuel Filter | Fullflow with replacement element |
| Oil Filter | Fullflow with replacement element |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 152 in |
| Transport Width | 131 in |
| Transport Height | 149 in |
| Transport Length | 517 in |
| Width w/ Outriggers Extended | 300 in |
| Upper Structure Tail Swing Radius | 159 in |
| Carrier/Base Length | 318,701 in |
Transmission
| Max Speed - Forward | 13.6 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 6 |
| Transmission Type | Full powershift |
Boom
| Max Height @ Max Raise Angle - no jib | 1,280 in |
|---|---|
| Min Height @ Max Raise Angle | 406 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
