Tadano

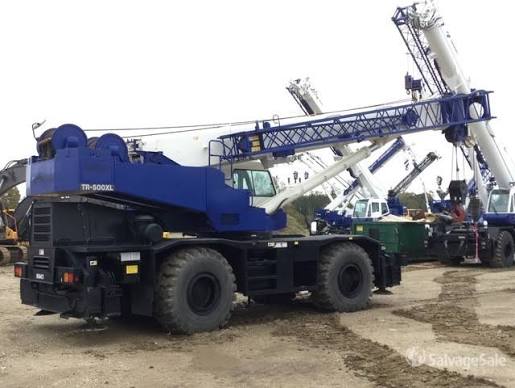

TR-500XL-4
- Operating Weight
- 68,790 lb
- Max Lift Capacity
- 100,000 lb
- Max Speed - Forward
- 29.9 mph
- Gross Power
- 223.0 hp
1 / 5
Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 68,790 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Tire Size | 23.5-25 20PR |
| Operating Voltage | 24 V |
| Hydraulic System Fluid Capacity | 148.0 gal |
| Cooling System Fluid Capacity | 3.5 gal |
| Engine Oil Capacity | 4.3 gal |
Engine
| Engine Model | 6D16-TLEE |
|---|---|
| Displacement | 460 in³ |
| Power Measured @ | 2,700 rpm |
| Gross Power | 223.0 hp |
| Aspiration | turbocharged + aftercooled |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 521 lb-ft |

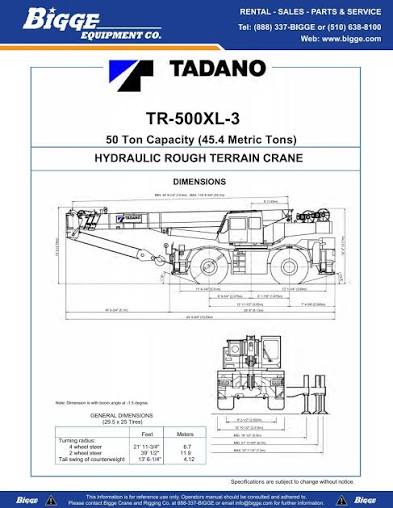

Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 13 in |
| Transport Width | 114 in |
| Transport Height | 148 in |
| Transport Length | 494 in |
| Width w/ Outriggers Extended | 276 in |
| Upper Structure Tail Swing Radius | 163 in |
Transmission
| Max Speed - Forward | 29.9 mph |
|---|---|
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 2 |
| Transmission Type | Electronically controlled full automatic transmission |
Boom
| Max Lift Capacity | 100,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,300 in |
| Min Height @ Max Raise Angle | 402 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 3 rpm |
| Min Operating Radius | 120 in |
| Max Operating Radius | 1,200 in |
