Tadano

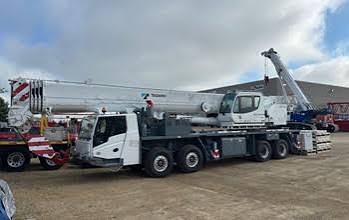

TT-300XL
- Operating Weight
- 55,400 lb
- Max Lift Capacity
- 60,000 lb
- Max Speed - Forward
- 80.8 mph
- Displacement
- 439 in³
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 55,400 lb |
|---|---|
| Tire Size | front: 425/65R22.5 single x2 rear: 11R225 Dual x4 |
| Carrier Fuel Capacity | 18.5 gal |
| Upper Structure Hydraulic System Fluid Capacity | 79.3 gal |
| Number of Axels | 3 |
Dimensions
| Transport Width | 106 in |
|---|---|
| Transport Height | 157 in |
| Transport Length | 465 in |
| Upper Structure Tail Swing Radius | 130 in |
| Carrier Length | 383 in |
Transmission
| Max Speed - Forward | 80.8 mph |
|---|---|
| Max Speed - Reverse | 27.2 mph |
| Number of Forward Gears | 10 |
| Number of Reverse Gears | 3 |
Boom
| Max Lift Capacity | 60,000 lb |
|---|---|
| Max Height @ Max Raise Angle - no jib | 1,320 in |
| Min Height @ Max Raise Angle | 480 in |
| Max Elevating Angle | 80 ° |
| Number of Sections | 4 |
| Swing Speed | 2 rpm |
| Min Working Radius | 96 in |
| Max Working Radius | 1,080 in |
CARRIER ENGINE
| Displacement | 439 in³ |
|---|---|
| Make | Tadano |
