Tadano

TT-600XL

Truck Crane

Operating Weight
81,790 lb
Max Lift Capacity
120,000 lb
Max Speed - Forward
61.6 mph
Displacement
660 in³
All truck cranes

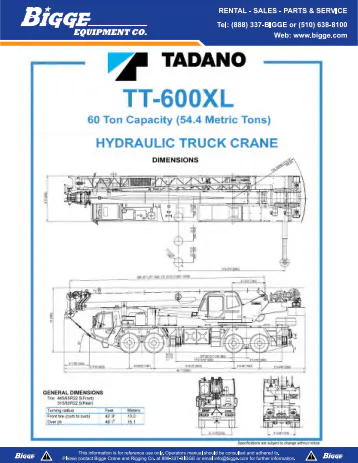

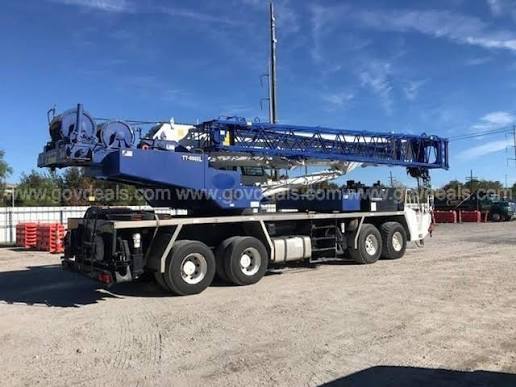

Tadano TT-600XL Truck Crane
1 / 5
Image 1 of 5
Image: bigge.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight81,790 lb
Operating Voltage24 V
Tire SizeFRONT 445/65R22.5 REAR 315/80R22.5 Dual
Carrier Fuel Capacity105.7 gal
Upper Structure Hydraulic System Fluid Capacity185.0 gal
Number of Axels2
Carrier Oil Capacity9.6 gal
Carrier Cooling System Fluid Capacity3.5 gal

Dimensions

Dimensions specifications
Ground Clearance13 in
Transport Width102 in
Transport Height144 in
Transport Length535 in
Width w/ Outriggers Extended304 in
Upper Structure Tail Swing Radius163 in

Transmission

Transmission specifications
Max Speed - Forward61.6 mph
Max Speed - Reverse5.5 mph
Number of Forward Gears12
Number of Reverse Gears2
Transmission TypeZF AS Tronic 12AS2301

Boom

Boom specifications
Max Lift Capacity120,000 lb
Max Height @ Max Raise Angle - no jib1,343 in
Min Height @ Max Raise Angle433 in
Max Elevating Angle81 °
Number of Sections4
Swing Speed2 rpm
Min Working Radius120 in
Max Working Radius1,260 in

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power385.0 hp
Displacement660 in³
Power Measured @1,800 rpm
MakeTadano
Max Torque1,310 lb-ft
Torque Measured @1,400 rpm
